| Technical details D50 |
| Maximum Flow 50 m3/h |
| Gravity / Airlift / Pump feed |
| Pump Version has 30% less capacity |
| Water running height 12 cm |
| Material: |
| Housing PP 10/15 mm / Drum PP 20/15 mm |
| RVS 316/304 / Silicone sealant |
| Precise CNC machine cut PP-construction |
| Specifications: |
| 4 x 110 mm inlets |
| 4 x 110 mm outlets |
| 1 x 110 mm Waste Outlet |
| 1 x 50 mm extra inlet |

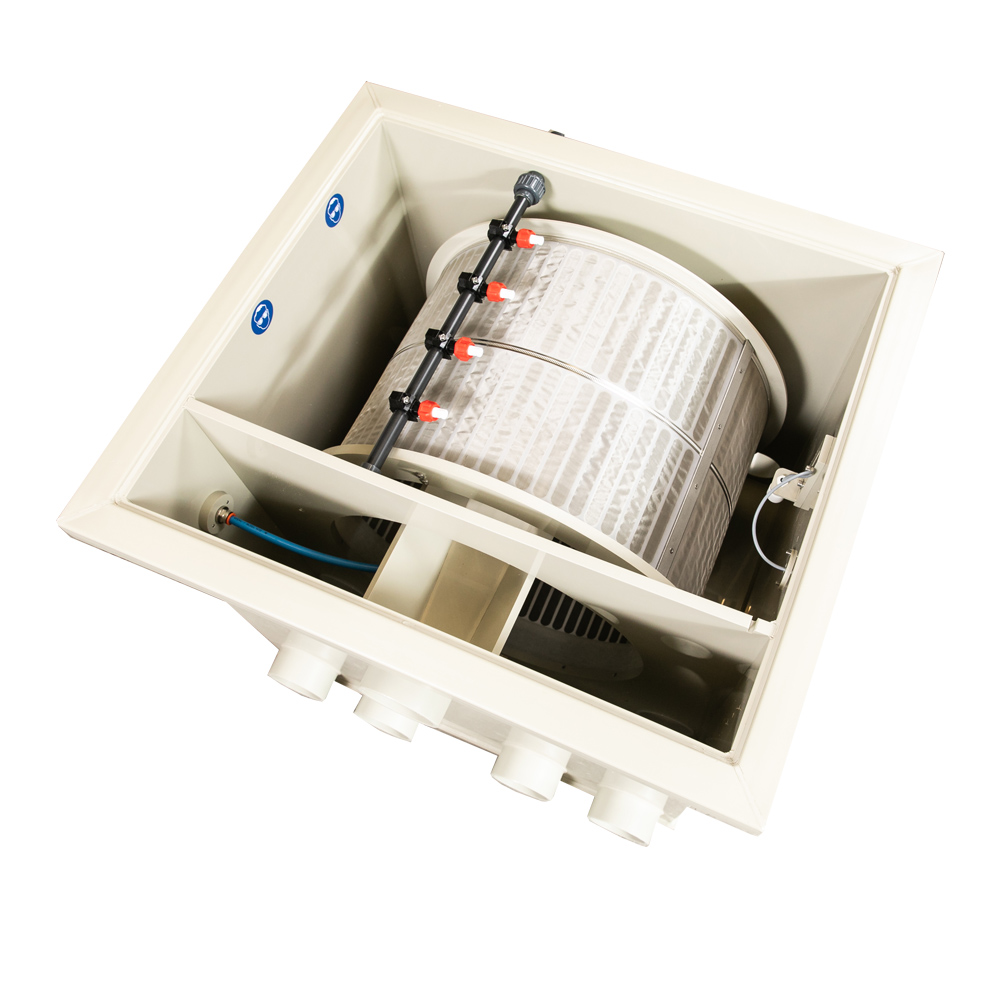

| Diameter of drum 60 cm x 40 cm |
| Patented woven 75 micron steel mesh |
| 2 x 90 mm Drum-Bypass |
| Removable spraybar |
| Removable waste water gutter |
| 40 NM drive engin with 2,5 RPM |
| With cover |
| Control panel: |
| Siemens Logo PLC Controlpanel |
| Automatic cleaning, plug and play with float switch |
| Manual operation run/wash |
| Cleaning (turn/flushing) time adjustable |
| Cleaning level adjustable |
| 3 plugs to have control over Drum, Cleaning and Pond-pump |
| Standard dry run protection for pond pump |
| Automatic Waste cleaning |
| All components built into modules wich quickly changeable |
| Comes with detailed instructions |
| CE approved |
| Warranty 2 years (not on the Sieve!) |
