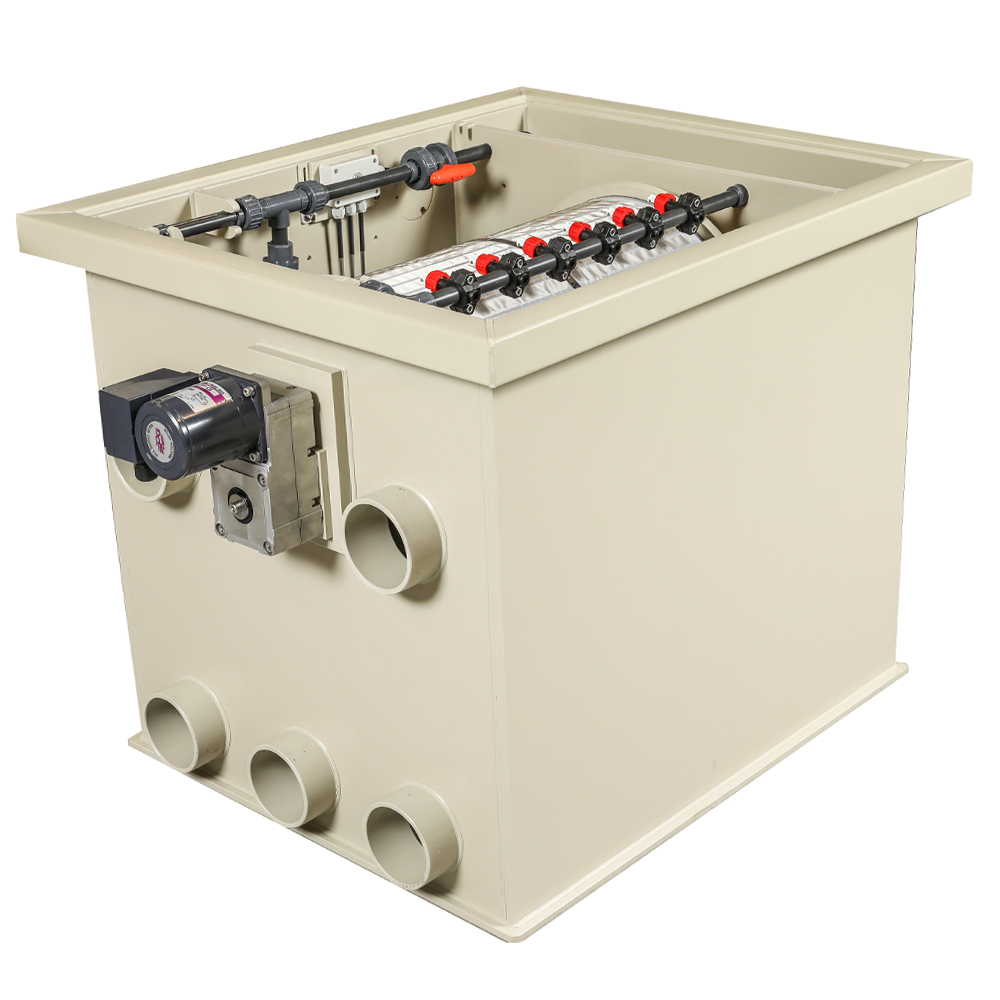

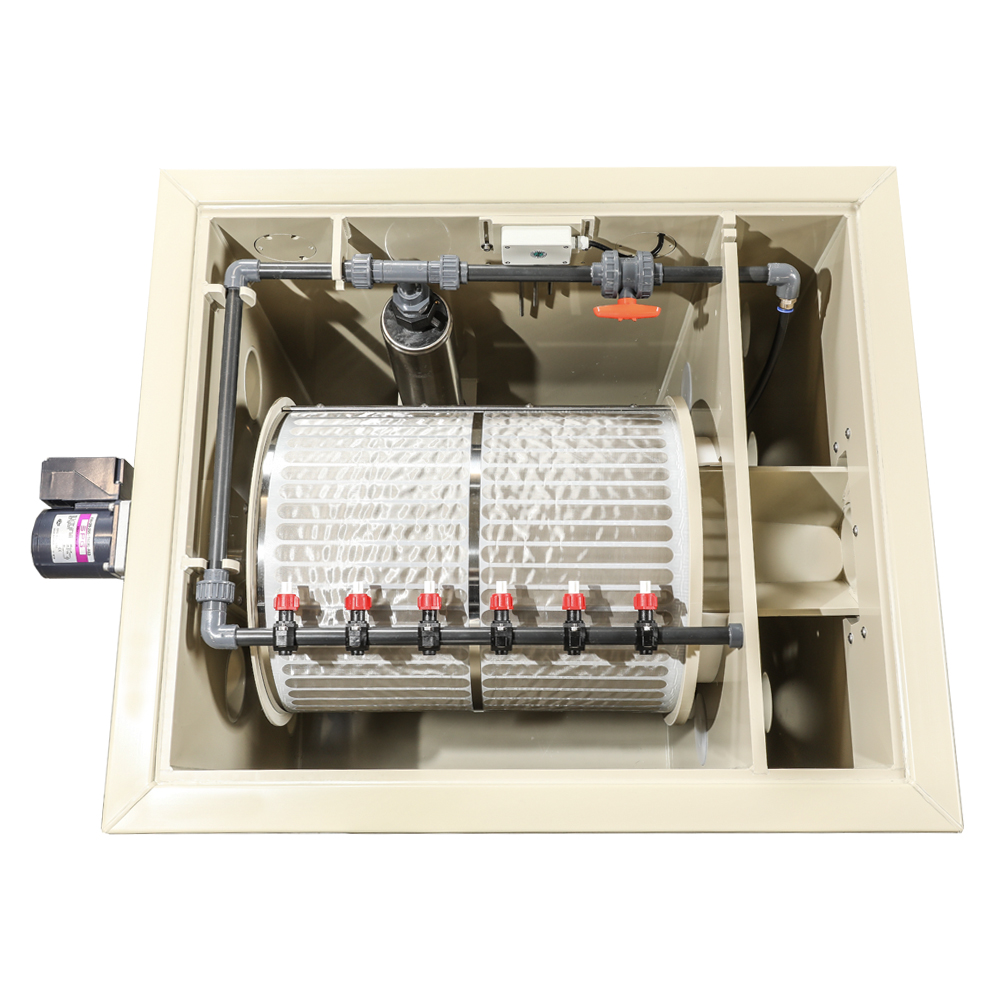

| Technical details PP35P |
| Maximum Flow 35 m3/h |
| Gravity / Airlift / Pump feed |
| Pump Version has 30% less capacity |
| Water running height 12 cm |
| Material: |
| Housing PP 10/15 mm / Drum PP 15 mm |
| RVS 316/304 / UV resistant Seal |
| Precise CNC machine cut PP-construction |
| Specifications: |
| Standard inputs and outputs acc. drawing |
| Changes to inputs and outputs possible |
| 1 x 110 mm Waste Outlet |
| Diameter of drum 40 cm x 50 cm |
| Patented woven 75/120 micron stainless steel mesh |
| 2 x 90 mm Drum-Bypass |
| Removable spraybar |
| Removable waste water gutter / Waste claening optional |
| Installed Cleaningpump 5 Bar |
| 50 NM drive engin with 4 RPM |
| With Lid |
| Control panel: |
| Automatic cleaning, plug and play with Sensor |
| Manual operation run/wash |
| Cleaning (turn/flushing) time adjustable |
| Cleaning level adjustable |
| 3 plugs to have control over Drum filter motor, Cleaning and Pond-pump |
| Standard dry run protection for pond pump |
| All components built into modules wich quickly changeable |
| Comes with detailed instructions |
| CE approved |
| Warranty 2 years (not on the Sieve!) |
