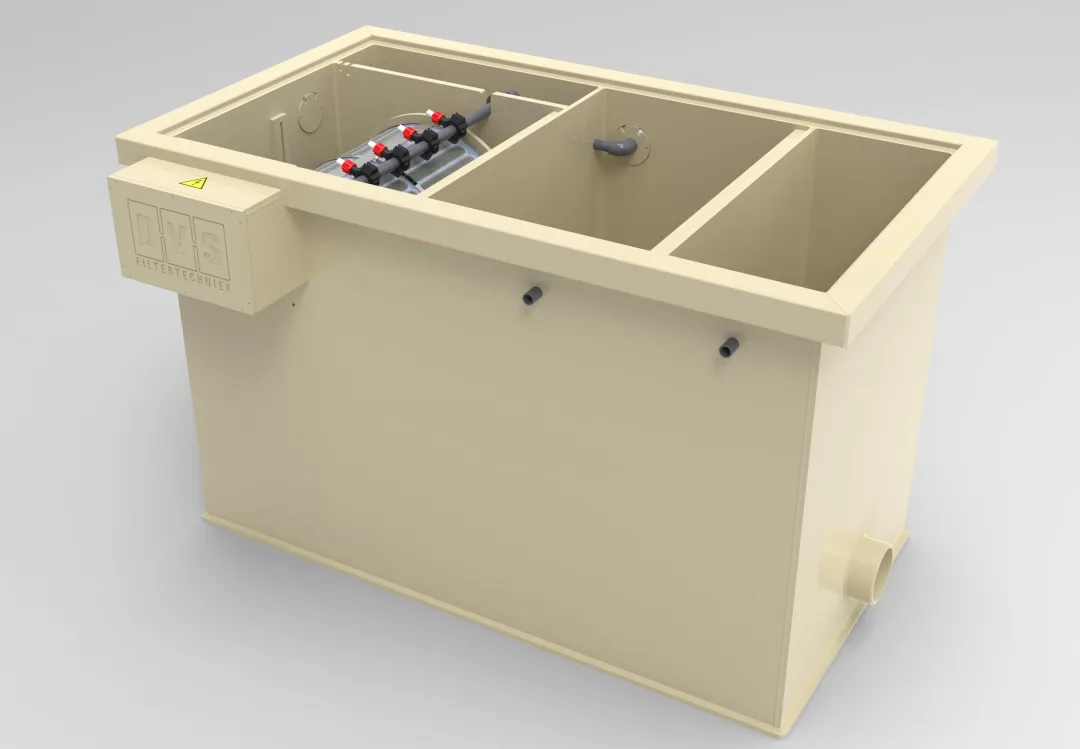

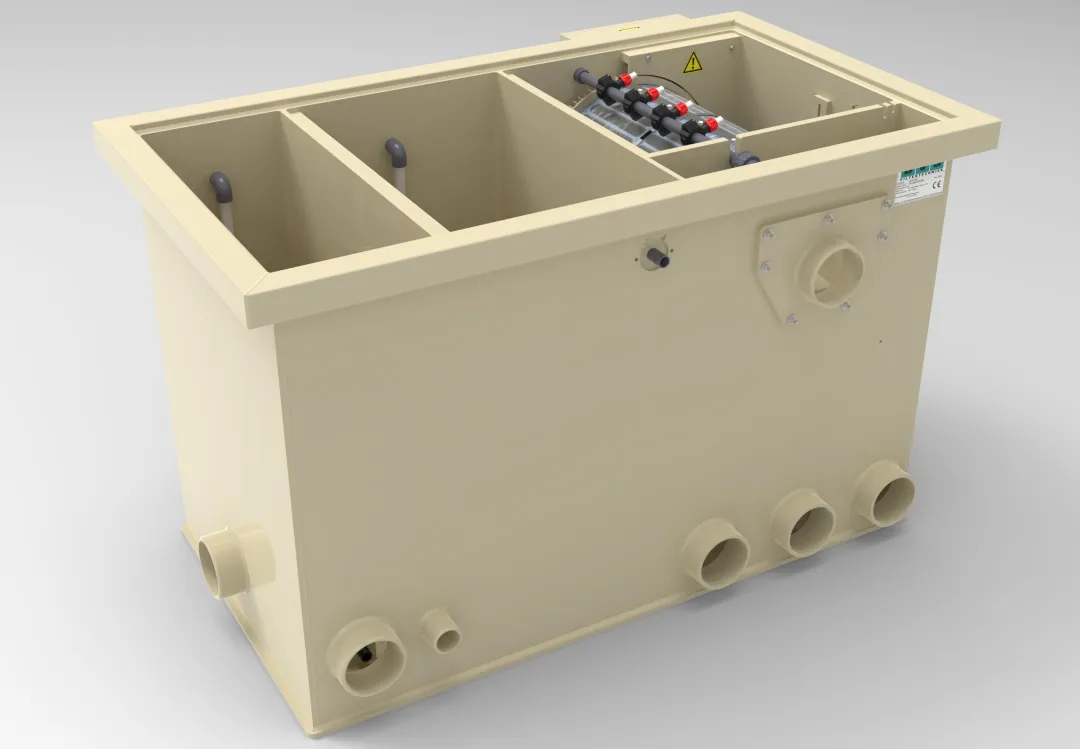

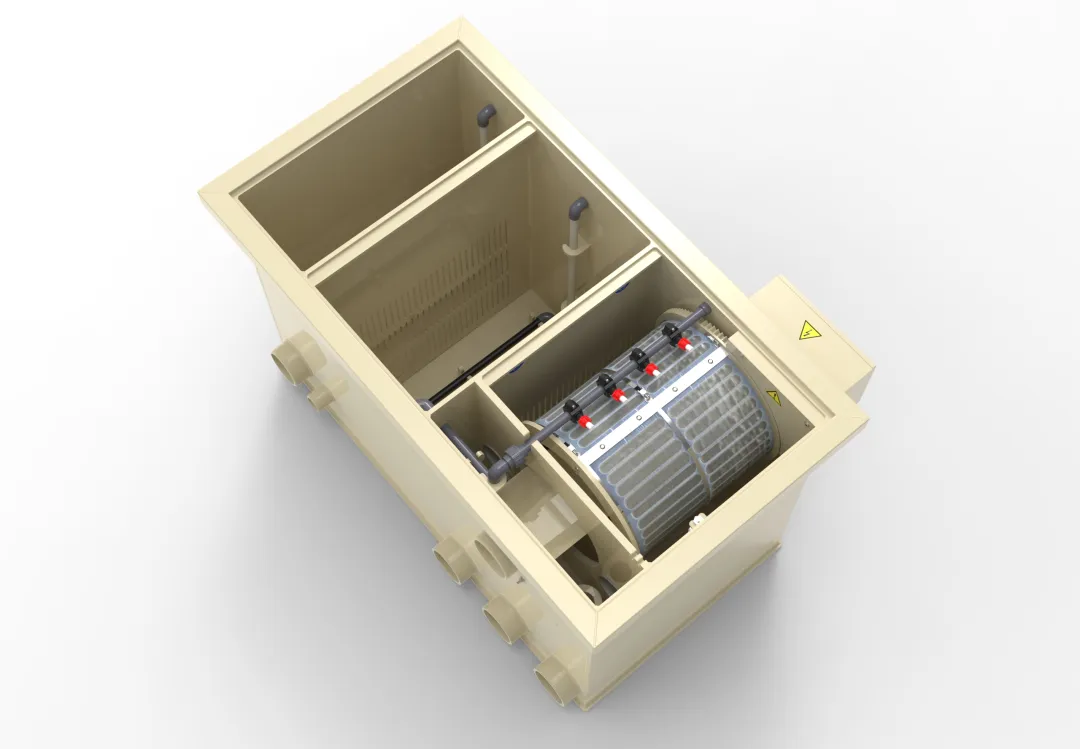

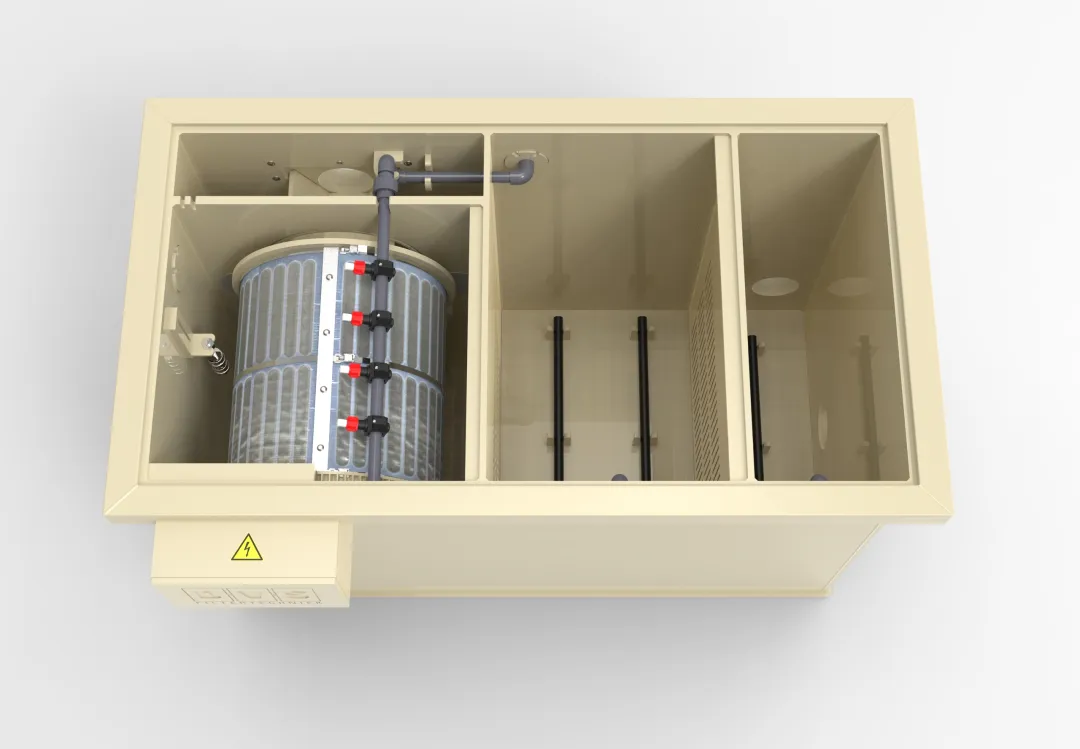

ENTRY M25
The ENTRY line is a filter line with the basic functionalities any filter has.
The M25 also features biological filtration through a moving bed chamber and a small mat chamber.
This filter is ideal for those looking for a solid basic filter without many extra’s.
Product specifications
- Dimensions (L x W x H) 828 x 1300 x 802 mm
- Built-in height 170 mm
- Maximum flow 25 m3/hour
- Koi pond 25 cubic meters
- Swimming pond 66 cubic meters
- Filter screen 120µ, 1 piece (thickness 5 mm)
- Number of nozzles 4 pieces
- Inlet 3x Ø110 mm
- Outlet 2x Ø110 mm gravedad
- 1x Ø110 mm for wastewater drainage
- 1x Ø 50 mm for external flush pump
- 1x PVC Ø 20 for external flushing pump
- Control DVS ECO/ENTRY control
- Sensor Float switch (single)
- Motor
- Rinse pump Option
- Possibility for Internal Circulation Pump
- Ventilation 3x air hose 25 mm (2x moving bed / 1x mat room)
- 2x connection 20/25
- Moving bed 70L Hel-X (not included)
- Customization Not possible
