ECO22
The ECO line also has all the basic functionality, but compared to the ENTRY line it has high-quality sieve elements.

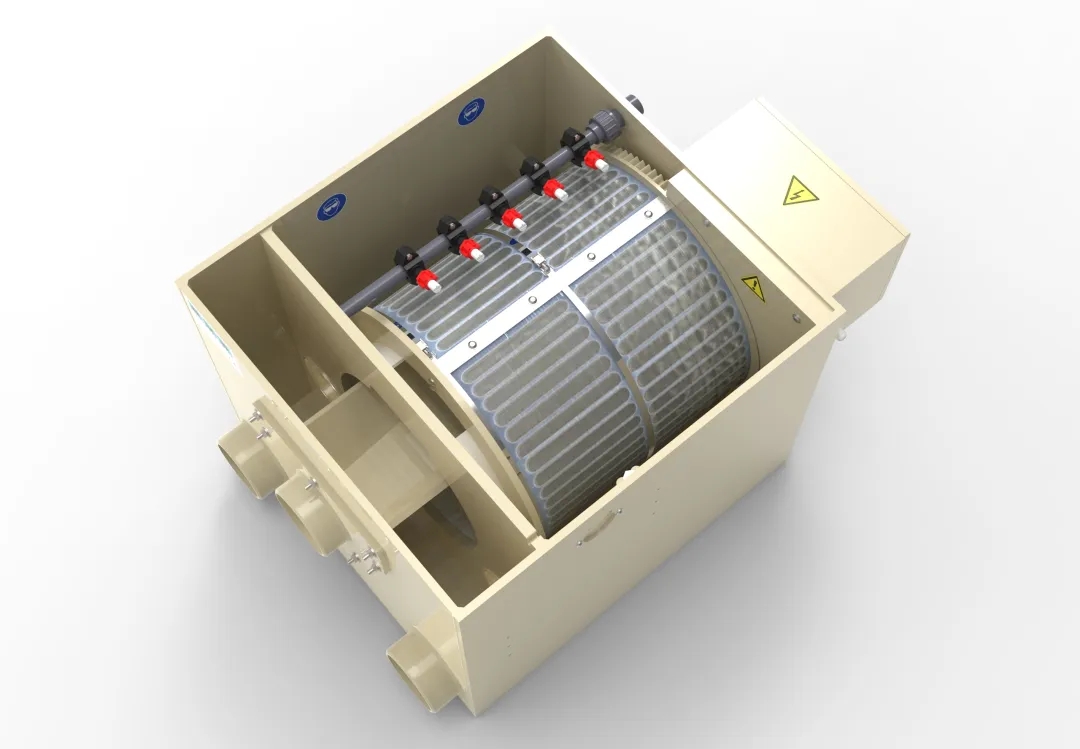

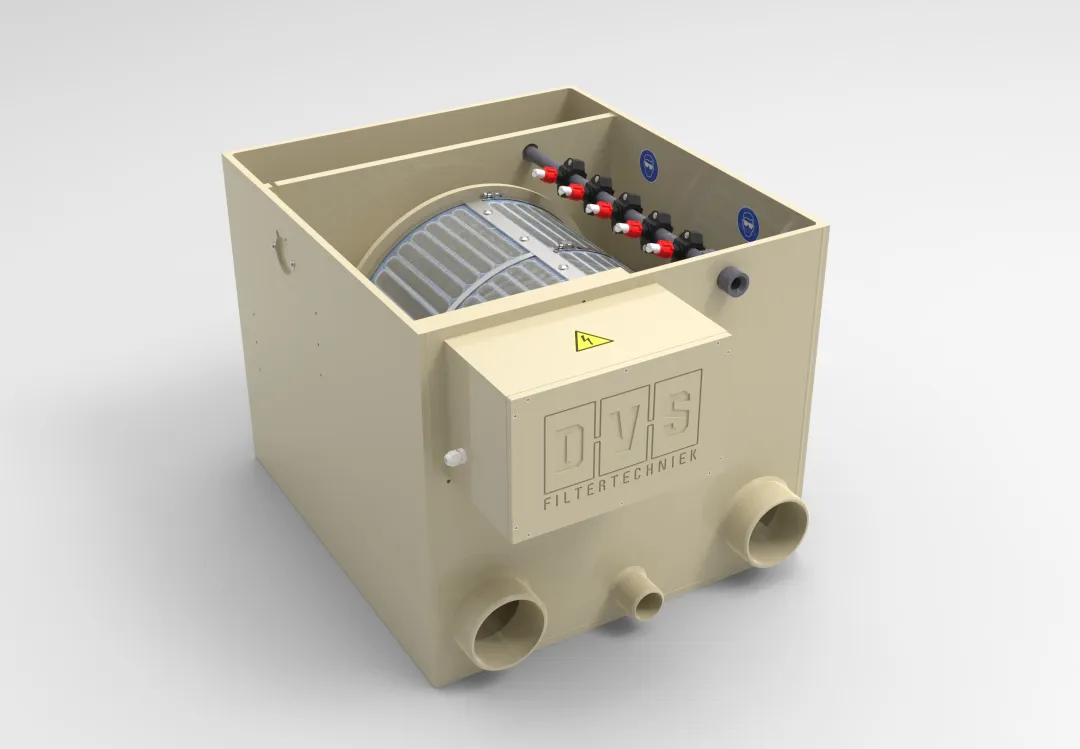

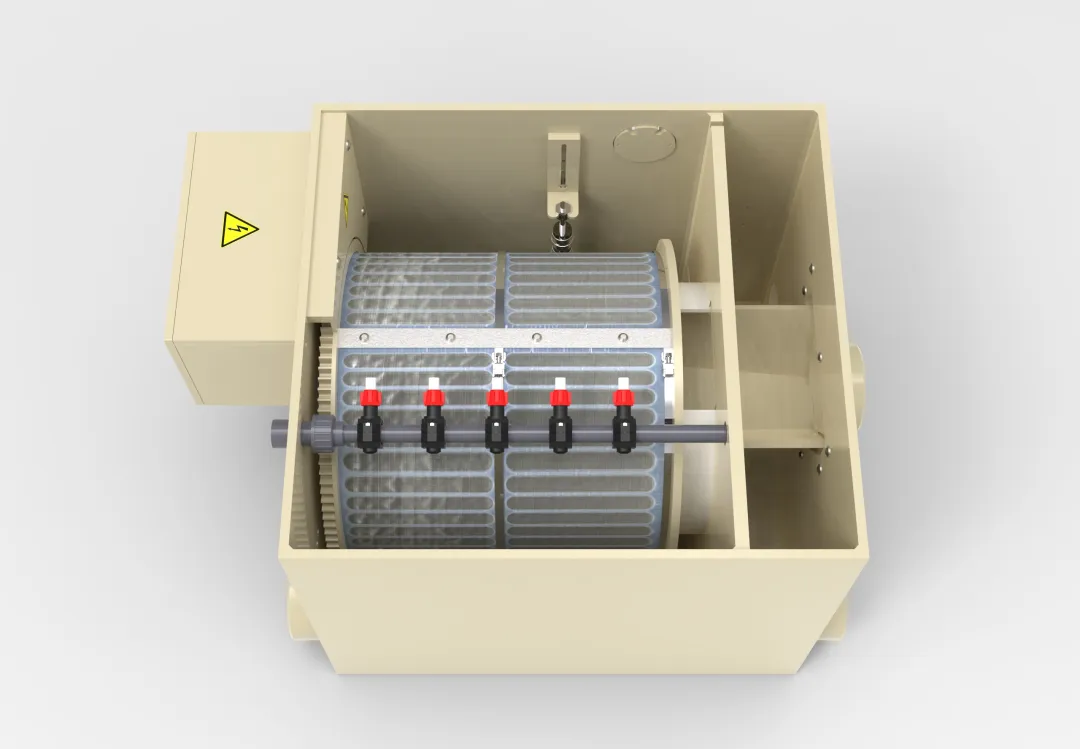

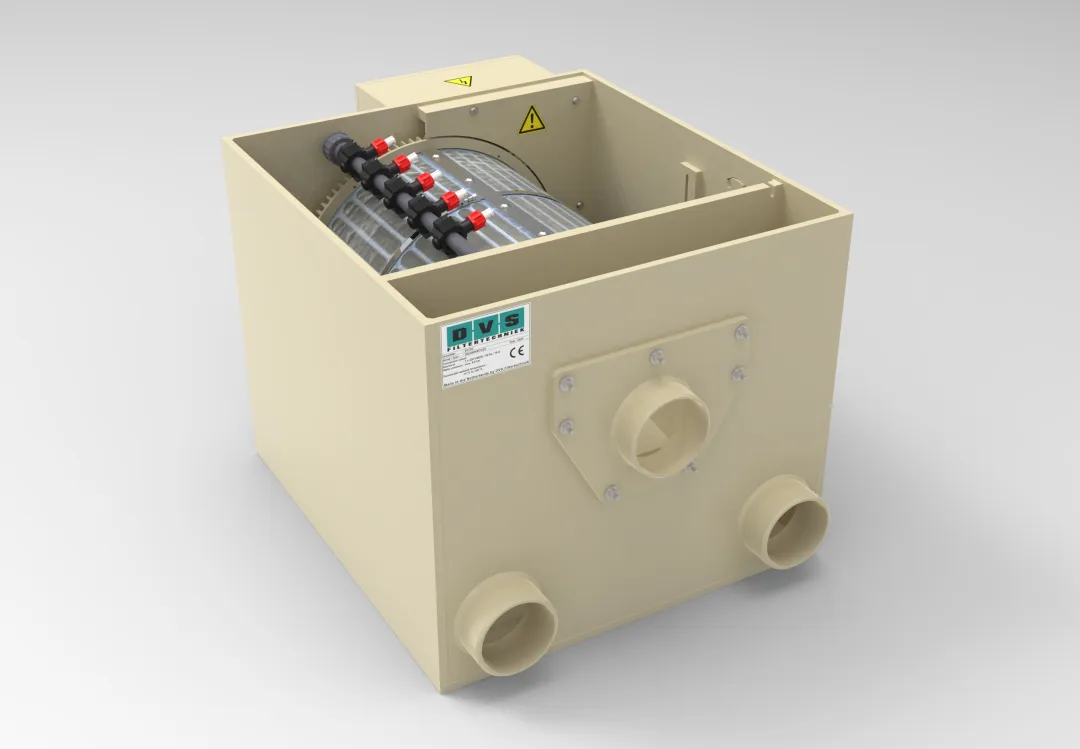

The filter features a small drum which provides mechanical filtration, and is ideal for people looking for a solid basic filter without many extra’s.
Product specifications
- Dimensions (L x W x H) 765 x 570 x 507 mm
- Built-in height 160 mm
- Maximum flow 22 m3/hour
- Koi pond 22 m³
- Swimming pond 66 m3
- Filter screen 120µ, 2 pieces (thickness 10 mm)
- Number of nozzles 5 pieces
- Inlet 2x Ø110 mm
- Outlet 2x Ø110 mm
- 1x Ø110 mm for wastewater drainage
- 1x Ø 50 mm for external flush pump
- 1x PVC 20-32 flush pump connection
- Control DVS ECO/ENTRY control
- Sensor Float switch (single)
- Motor
- Rinse pump Not included
- Customization Not possible
