C15

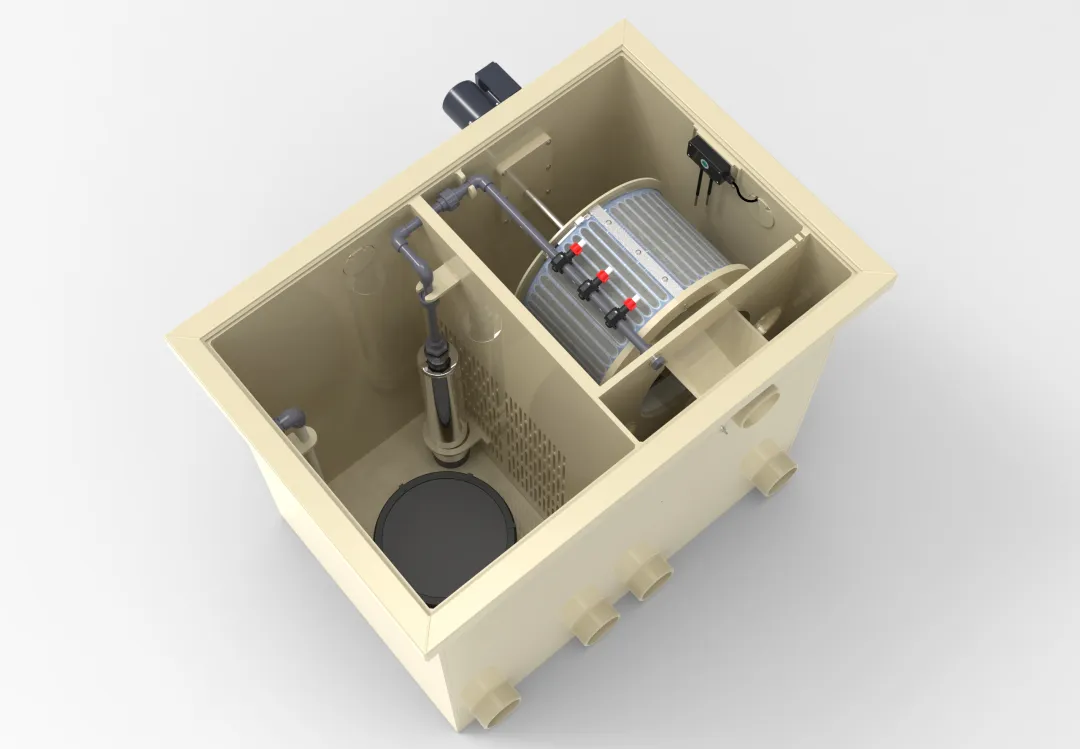

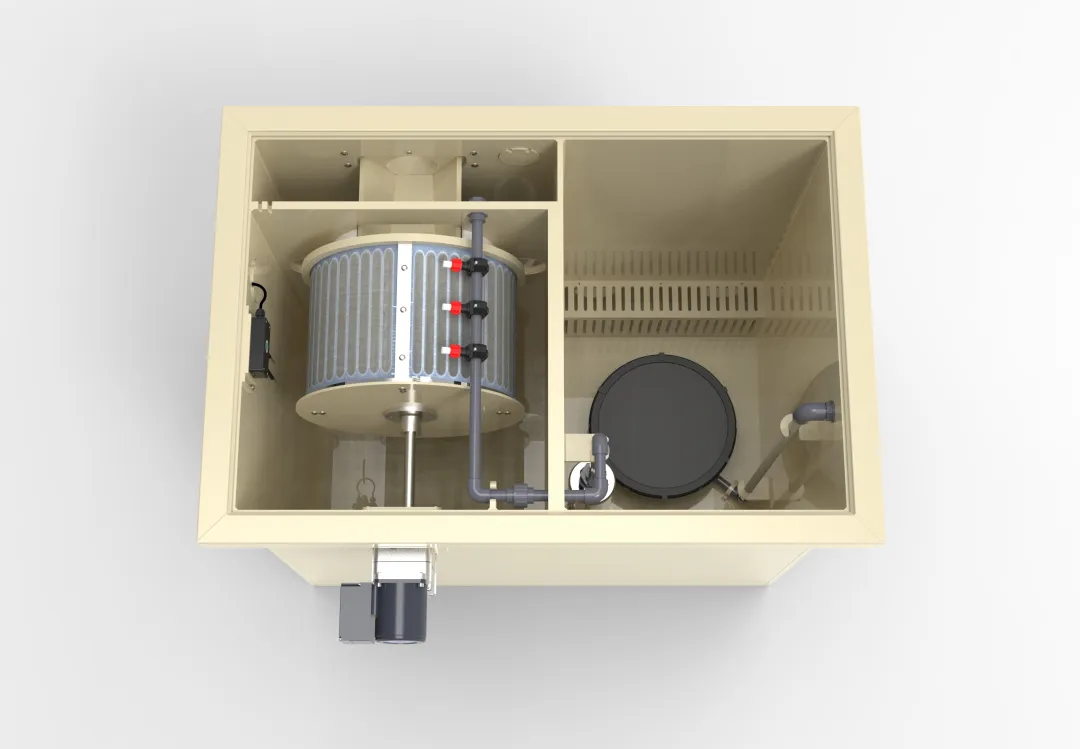

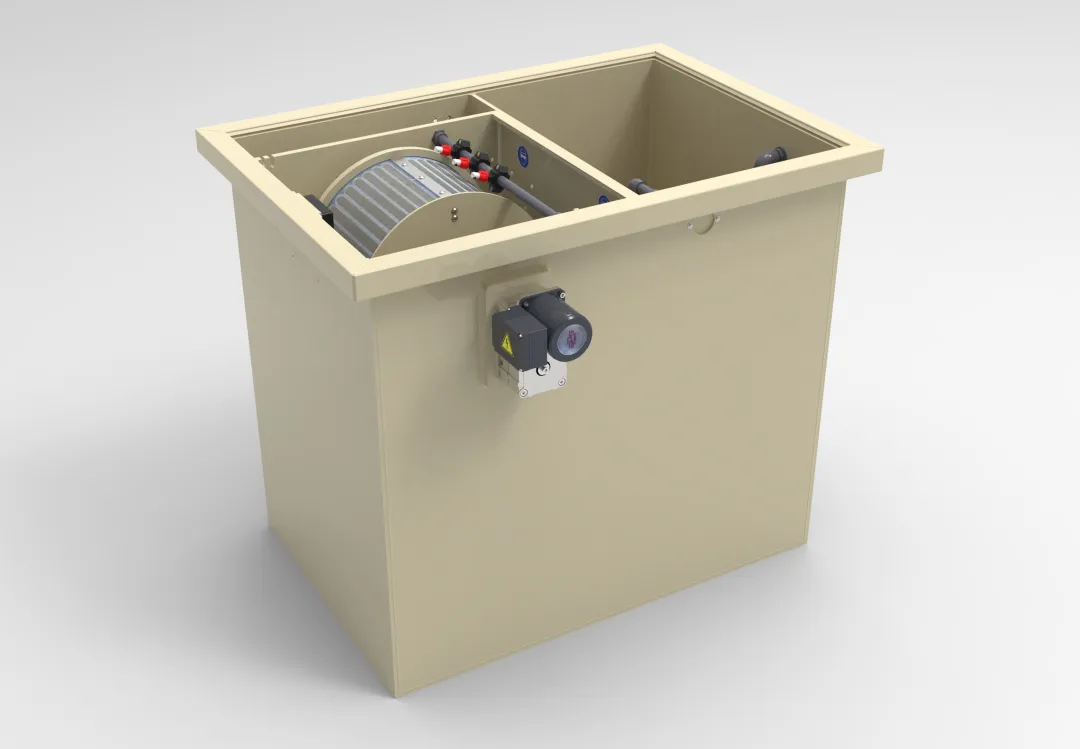

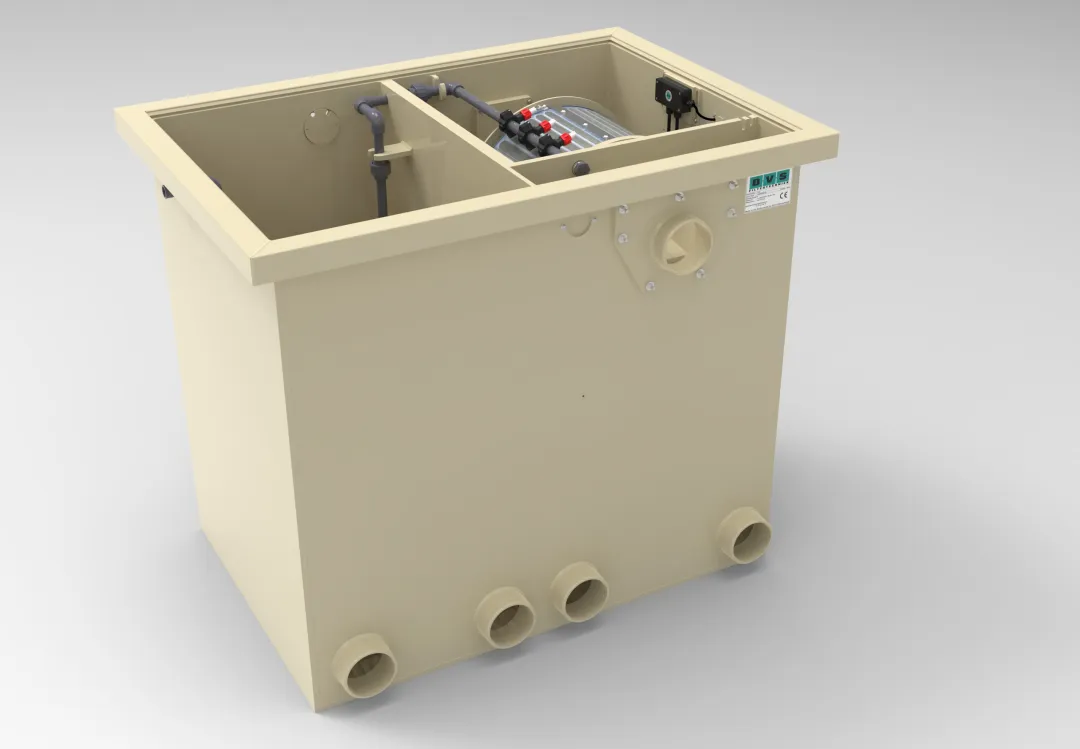

The C15 provides both mechanical and biological filtration.
For somewhat smaller ponds, this is a perfect system to achieve good water quality.
The filter comes standard with an HQ control with WiFi functionality and can be expanded with various options such as automatic gutter flushing, temperature sensor and an automatic refill system so you almost don't have to worry about it.
Product specifications
- Dimensions (L x W x H) 952 x 1160 x 985 mm
- Built-in height 120 mm
- Max. flow 15 m3/hour
- Koi pond 15 cubic meters
- Swimming pond 60 cubic meters
- Filter screen 120µ, 2 pieces (thickness 10 mm)
- Number of nozzles 3 pieces
- Inlet 2x Ø110 mm
- Outlet 2x Ø110 mm gravedad
- 1x Ø110 mm for wastewater drainage
- Control DVS digital HQ control + WiFi
- Sensor 2-pens
- Motor 60W / 50Nm (direct drive)
- Rinse pump Pasante, 5 bar
- Ventilation 1x air disc, connection 20/25
- Moving bed Space for 150L Hel-X (not included)
- Customization Inquire about the possibilities
