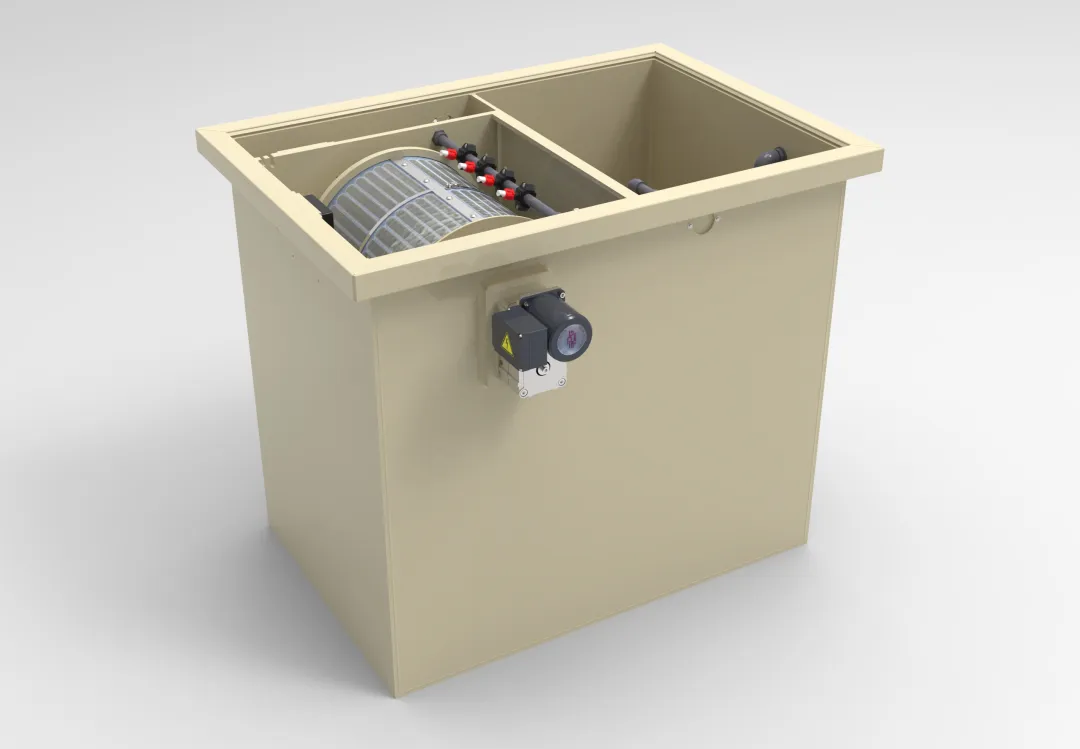

C22
The C22 provides both mechanical and biological filtration.
The filter comes with an HQ control with WiFi functionality as standard and can be expanded with various options such as automatic gutter flushing, temperature sensor and an automatic refill system so that you almost don't have to worry about it.
Product specifications
- Dimensions (L x W x H) 952 x 1160 x 985 mm
- Built-in height 120 mm
- Max. flow 22 m3/hour
- Pond 22 cubic meters
- Swimming pond 88 cubic meters
- Filter screen 120µ, 2 pieces (thickness 10 mm)
- Number of nozzles 5 pieces
- Inlet 2x Ø110 mm
- Outlet 2x Ø110 mm gravedad
- 1x Ø110 mm for wastewater drainage
- Control DVS digital control + WiFi
- Sensor 2-pens
- Motor 60W / 50Nm (direct drive)
- Rinse pump Stagiaire, 5 bar
- Ventilation 1x air disc, connection 20/25
- Moving bed Space for 150L Hel-X (not included)
- Customization Inquire about the possibilities
Downloads
We are happy to assist you
Do you have questions or need advice? The team at DVS Filtertechniek is here to help. For purchasing our products, you can find the nearest dealer via our website.
