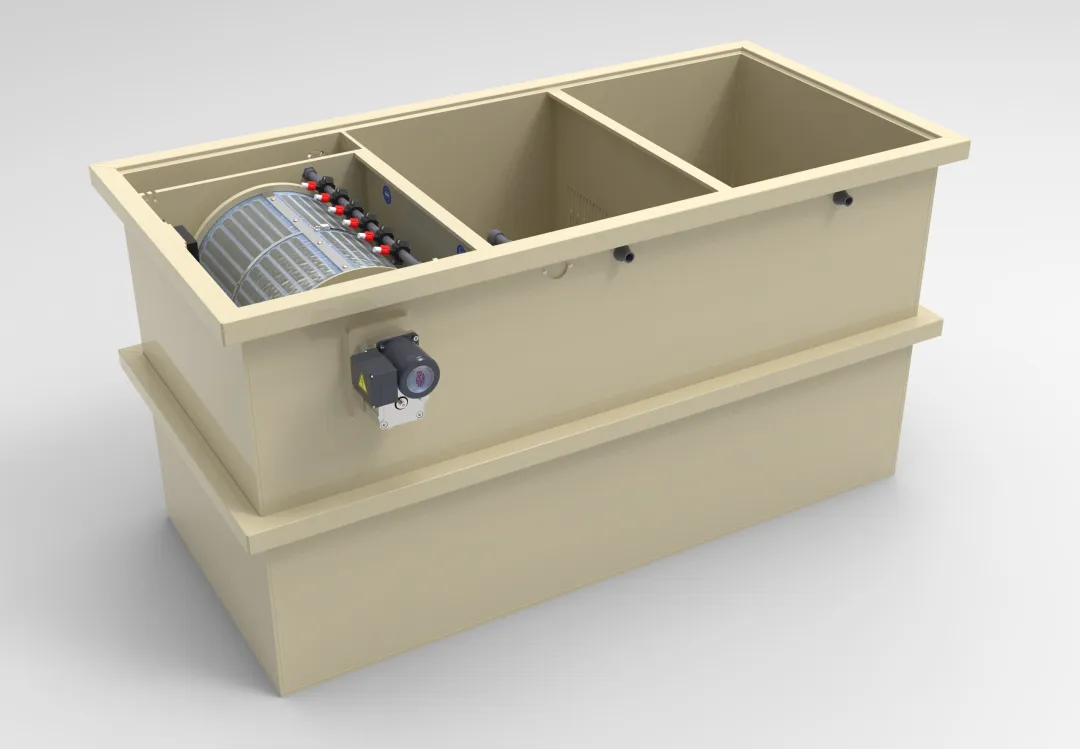

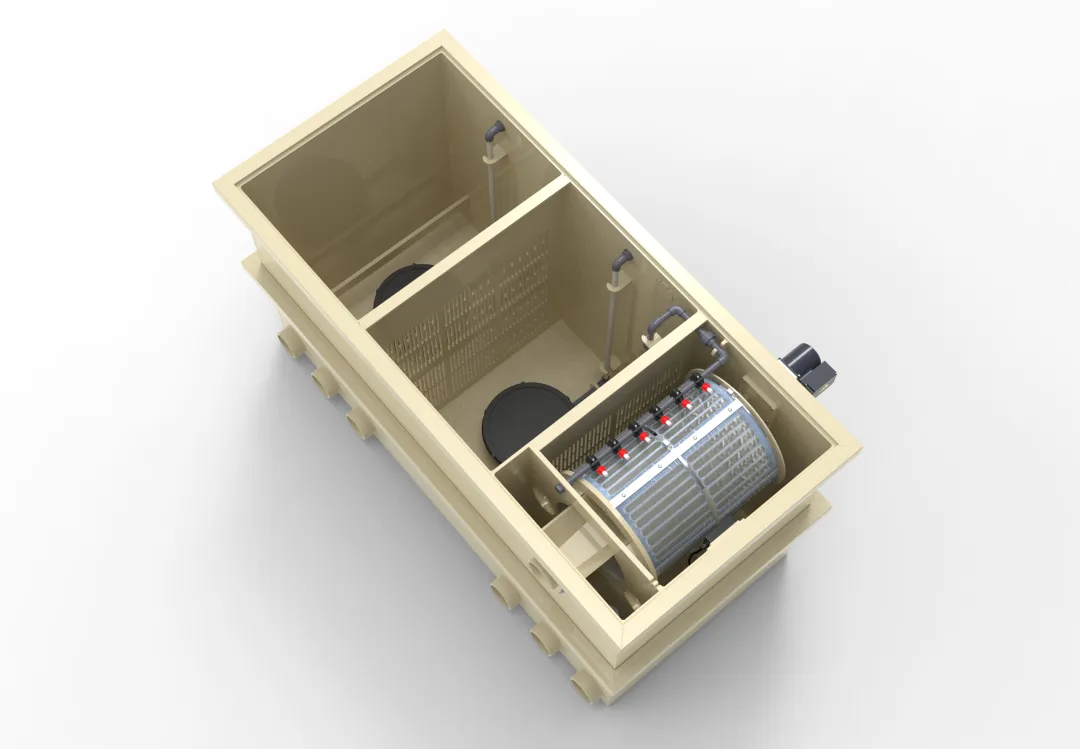

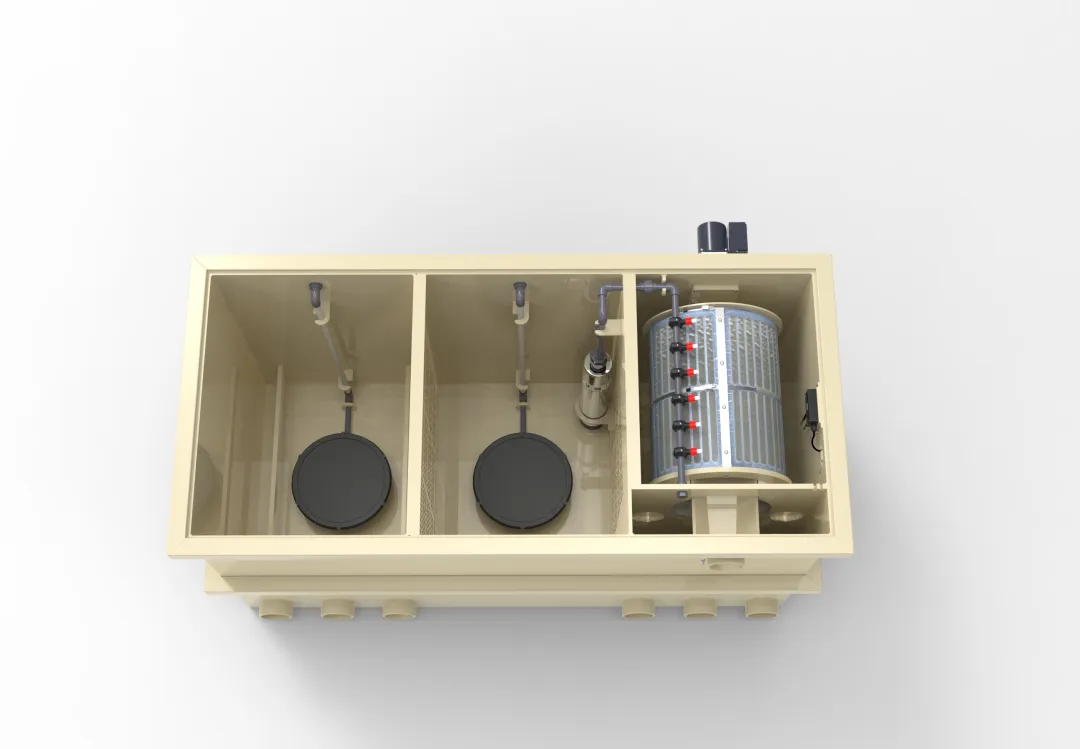

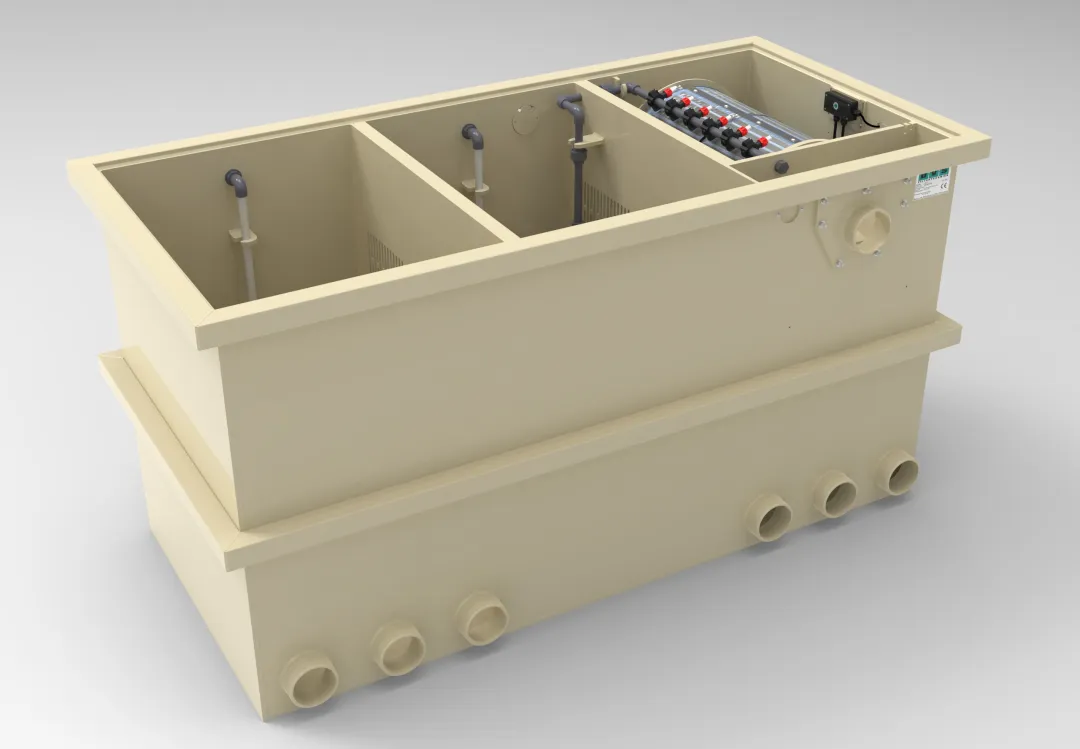

C35-M
The C35-M provides both mechanical and biological filtration. Because this system is equipped with a mat chamber, the biological filter starts up quickly.
The filter comes standard with an HQ control with WiFi functionality and can be expanded with various options such as automatic gutter rinsing, temperature sensor and an automatic refill system so you almost don't have to worry about it.
Product specifications
- Dimensions (L x W x H) 1062 x 1900 x 985 mm
- Built-in height 120 mm
- Maximum flow 35 m3/hour
- Koi pond 35 cubic meters
- Swimming pond 140 cubic meters
- Filter screen 120µ, 2 pieces (thickness 10 mm)
- Number of nozzles 6 pieces
- Inlet 3x Ø110 mm
- Outlet 3x Ø110 mm gravedad
- 1x Ø110 mm for wastewater drainage
- Control DVS digital control + WiFi
- Sensor 2-pens
- Motor 60W / 50Nm (direct drive)
- Rinse pump Intern, 5 bar
- Ventilation 2x air disc, 2x connection 20/25
- Moving bed Space for 200L Hel-X (not included)
- Mattenkamer Space for mats 2 pieces (2000x1000 not included)
- Customization Inquire about the possibilities
