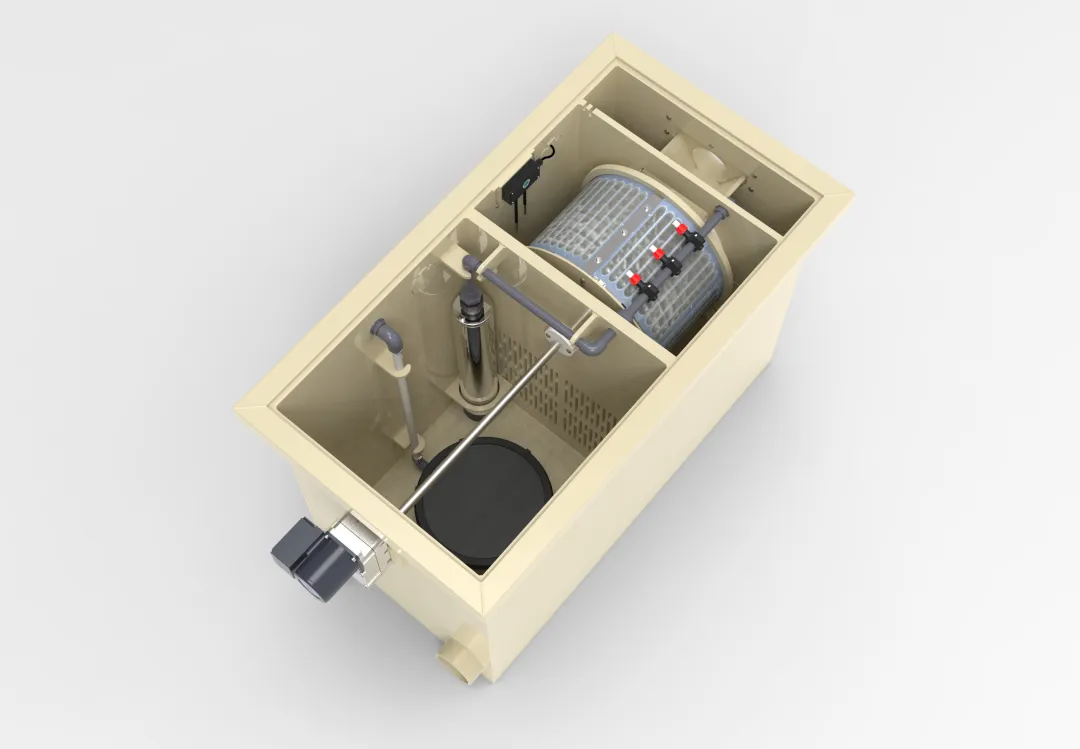

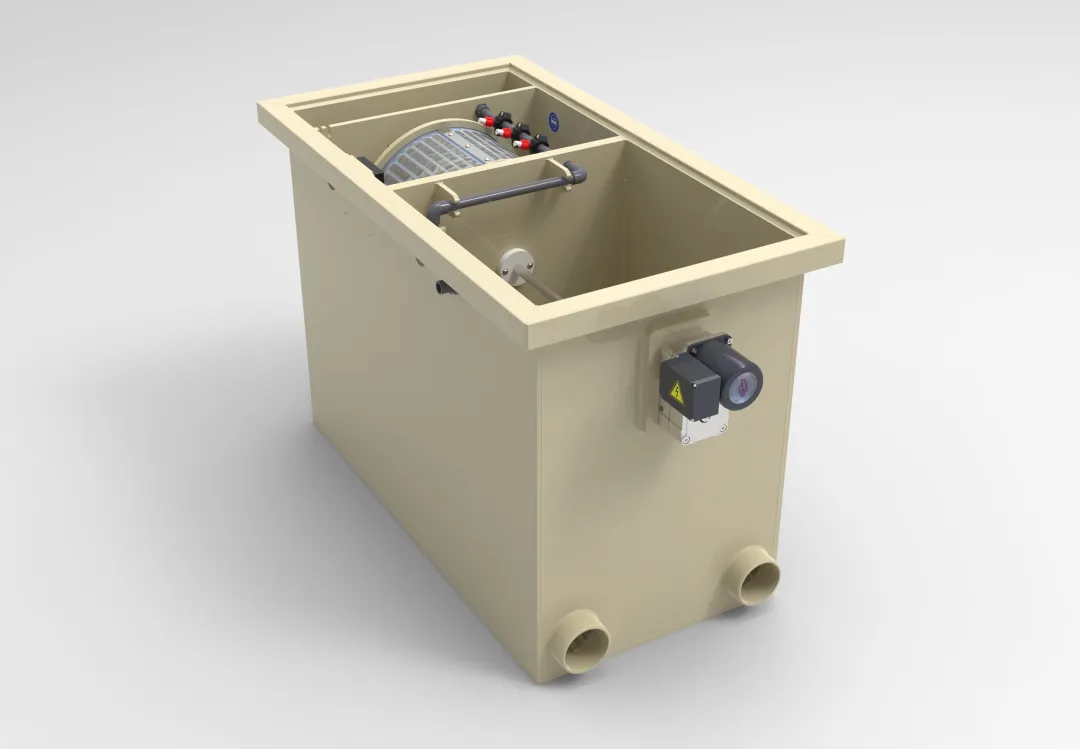

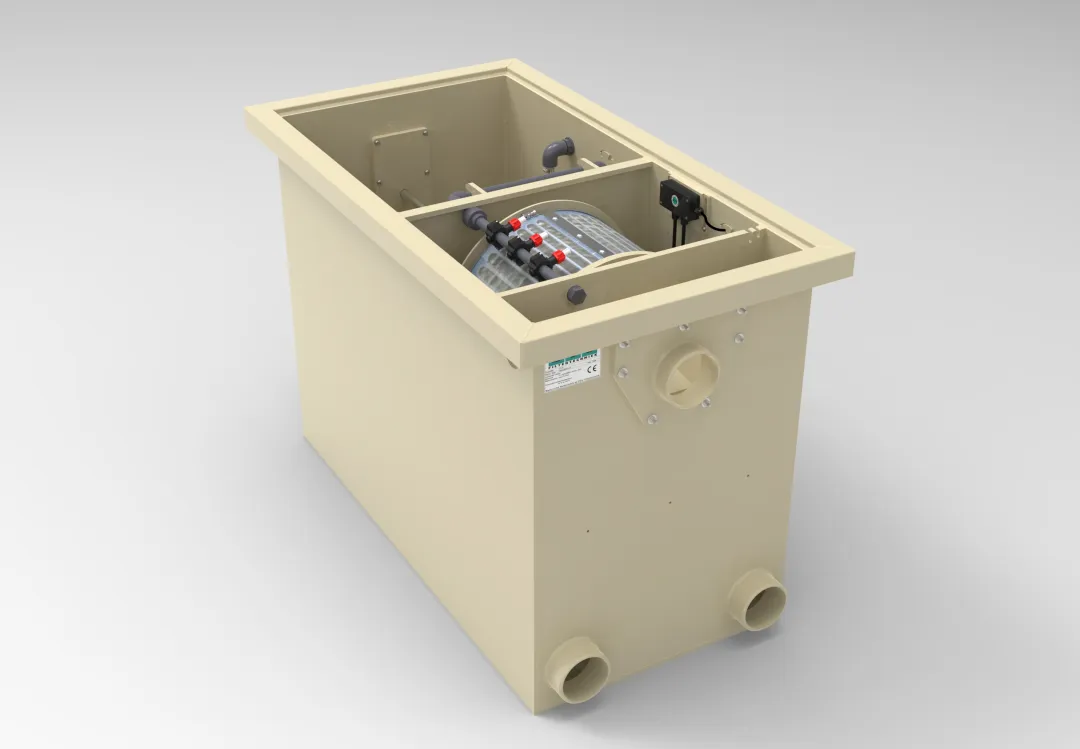

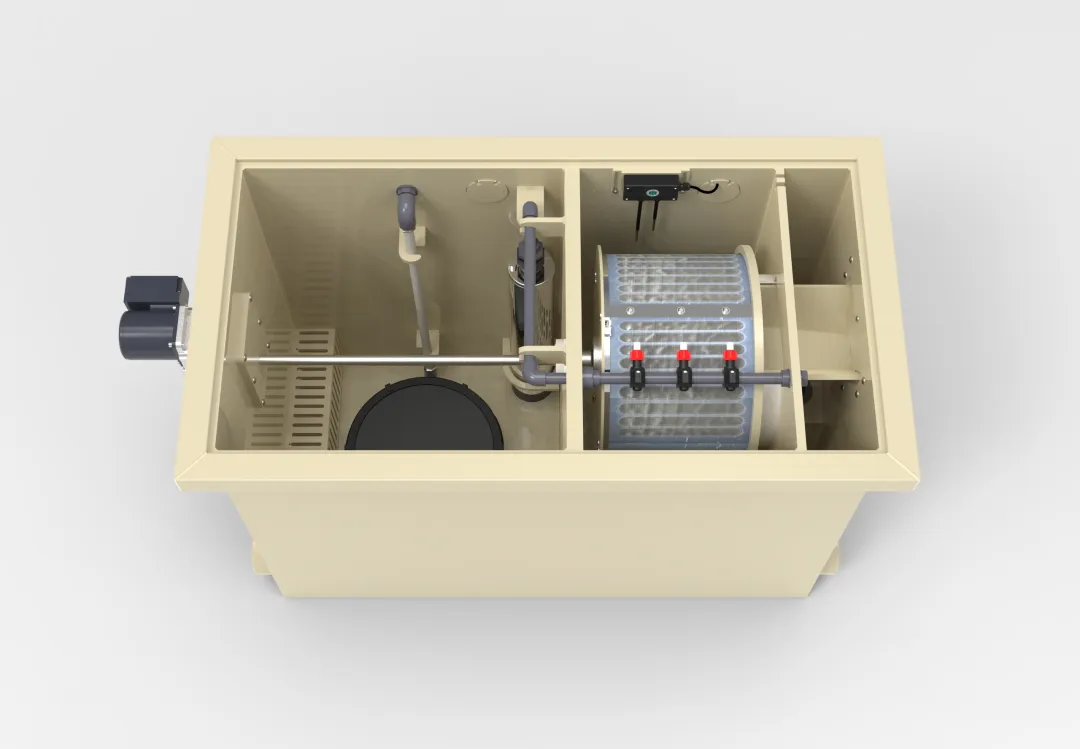

CL15
The CL15 provides both mechanical and biological filtration.
For somewhat smaller ponds, this is a perfect system to achieve good water quality.
The filter comes standard with an HQ control with WiFi functionality and can be expanded with various options such as automatic gutter rinsing, temperature sensor and an automatic refill system so you almost don't have to worry about it.
Product specifications
- Dimensions (L x W x H) 1372 x 670 x 825 mm
- Built-in height 120 mm
- Maximum flow 15 m3/hour
- Koi pond 15 m³
- Swimming pond 60 m3
- Filter screen 120µ, 2 pieces (thickness 10 mm)
- Number of nozzles 3 pieces
- Inlet 2x Ø110 mm
- Outlet 2x Ø110 mm gravity
- 1x Ø110 mm for wastewater
- Control DVS digital control + WiFi
- Sensor 2-pens
- Motor 60W / 50Nm (direct drive)
- Rinse pump Intern, 5 bar
- Aeration 1x air disc, connection 20/25
- Moving bed Space for 100L Hel-X (not included)
- Customization Inquire about the possibilities
