CL35

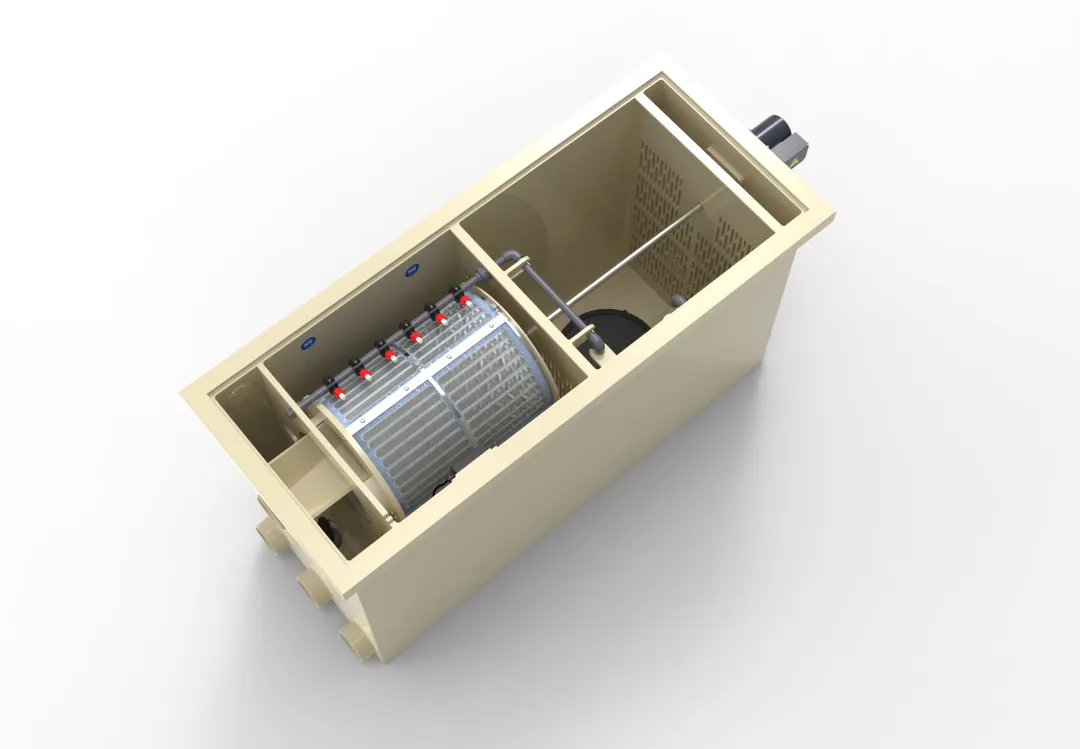

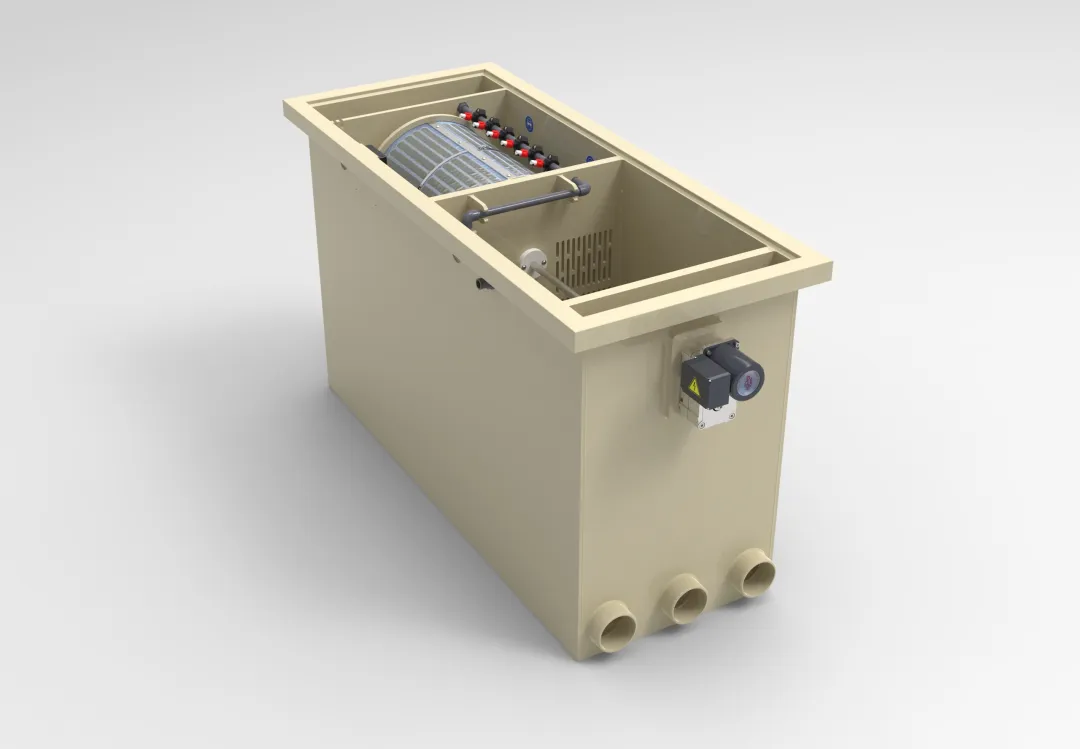

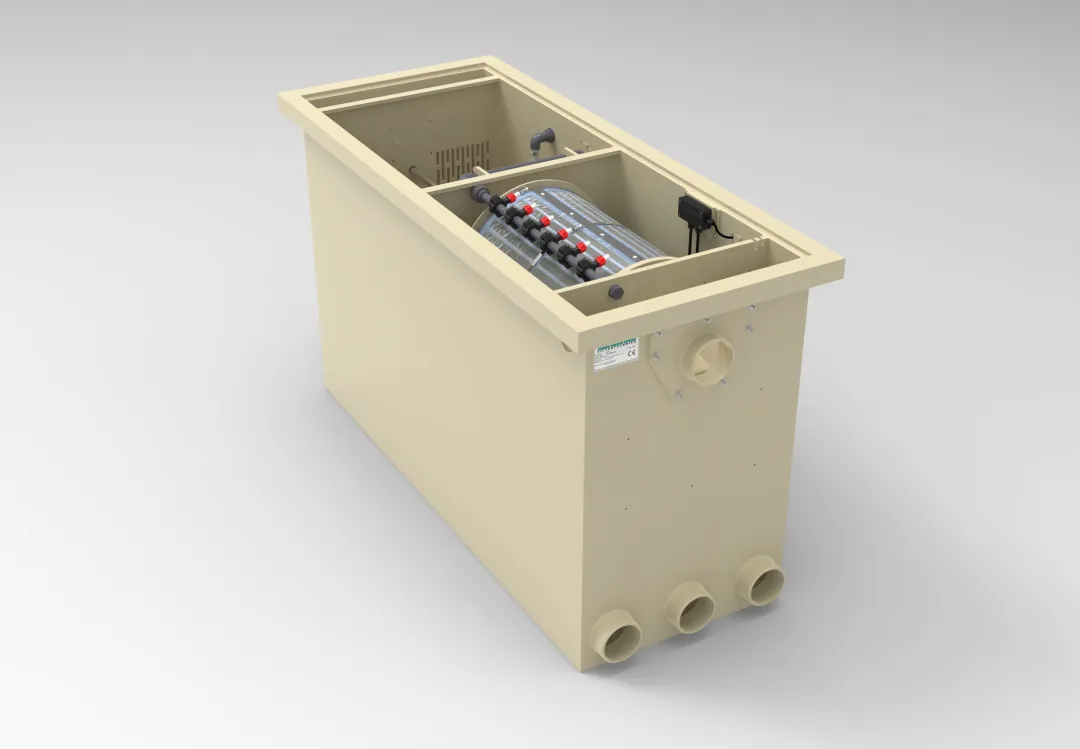

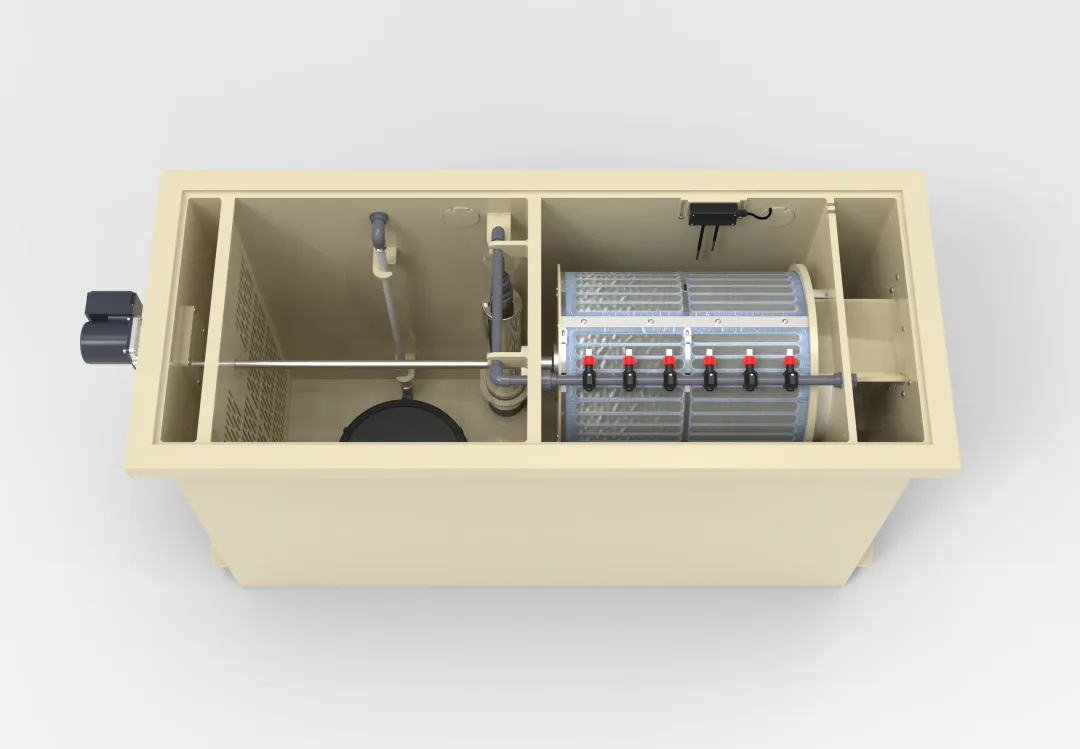

The CL35 provides both mechanical and biological filtration.
The filter comes with an HQ control with WiFi functionality as standard and can be expanded with various options such as automatic gutter flushing, temperature sensor and an automatic refill system so that you have almost nothing to worry about.
Product specifications
- Dimensions (L x W x H) 1747 x 670 x 925 mm
- Built-in height 120 mm
- Maximum flow 35 m3/hour
- Koi pond 35 m³
- Swimming pond 140 m3
- Filter screen 120µ, 2 pieces (thickness 10 mm)
- Number of nozzles 6 pieces
- Inlet 3x Ø110 mm
- Outlet 3x Ø110 mm gravity
- 1x Ø110 mm for wastewater drainage
- Control DVS digital HQ control + WiFi
- Sensor 2-pens
- Motor 60W / 50Nm (direct drive)
- Rinse pump Intern, 5 bar
- Aeration 1x air disc, connection 20/25
- Moving bed Space for 150L Hel-X (not included)
- Customization Inquire about the possibilities
