CL35-M

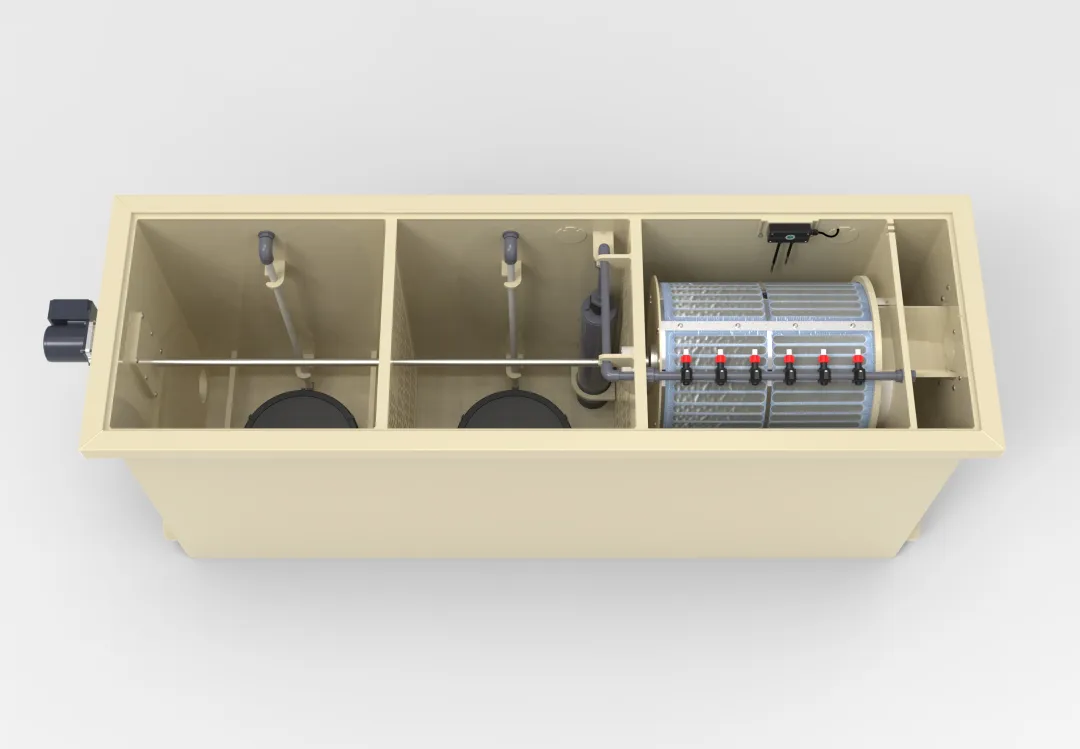

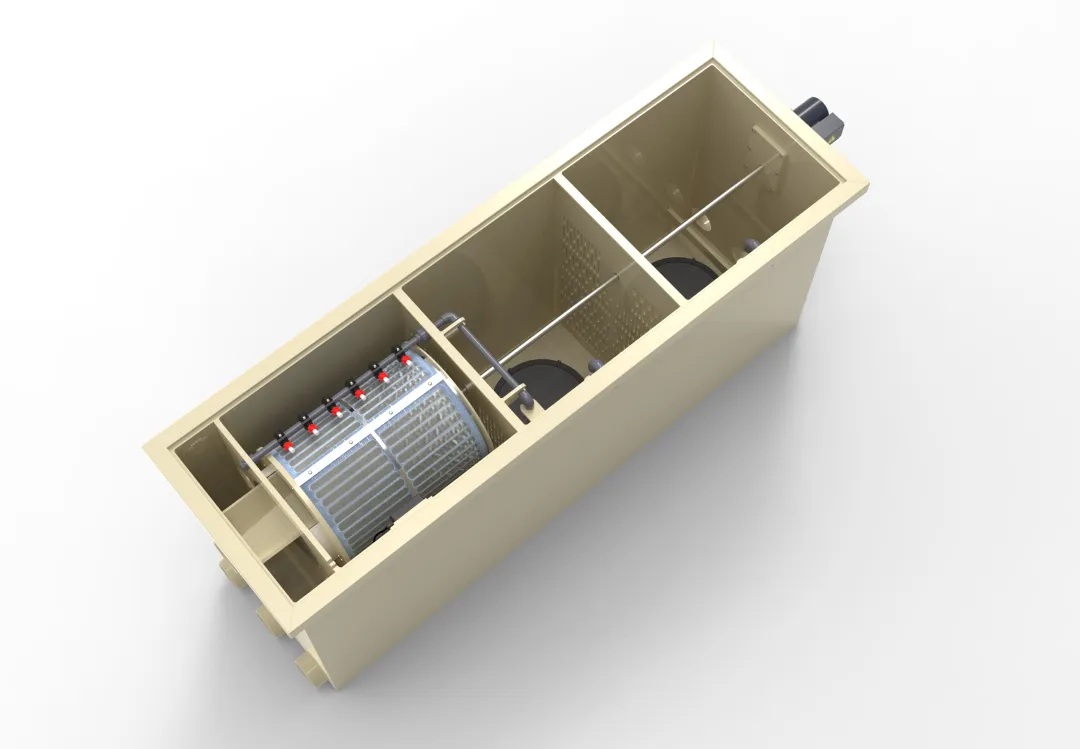

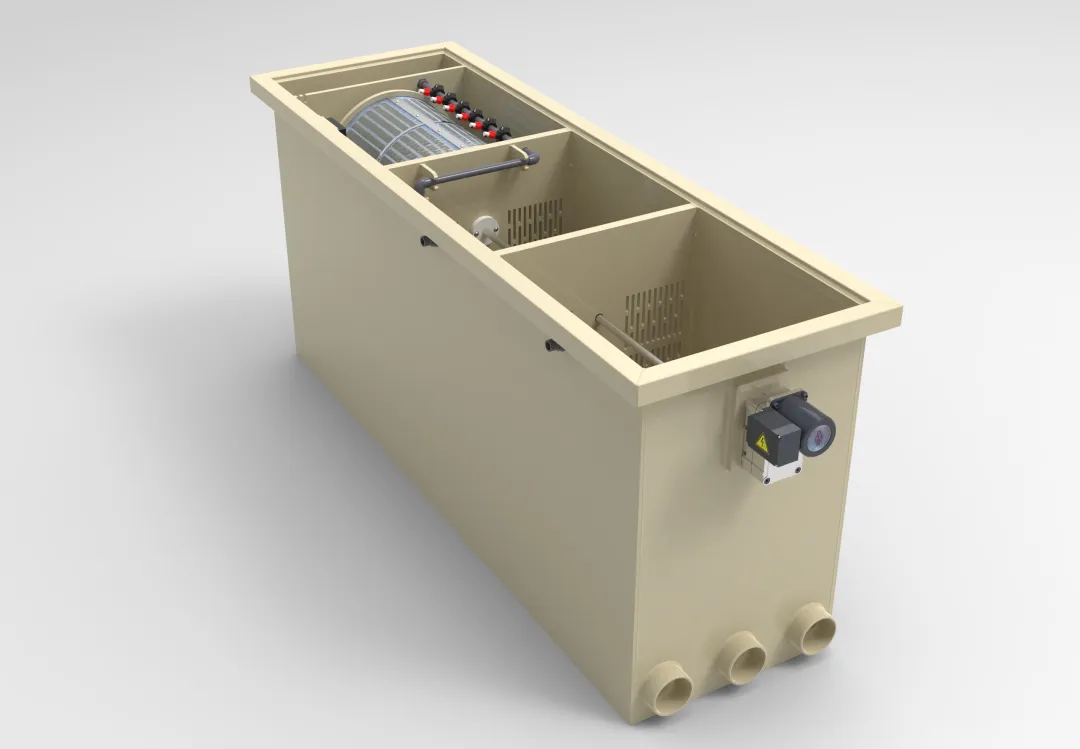

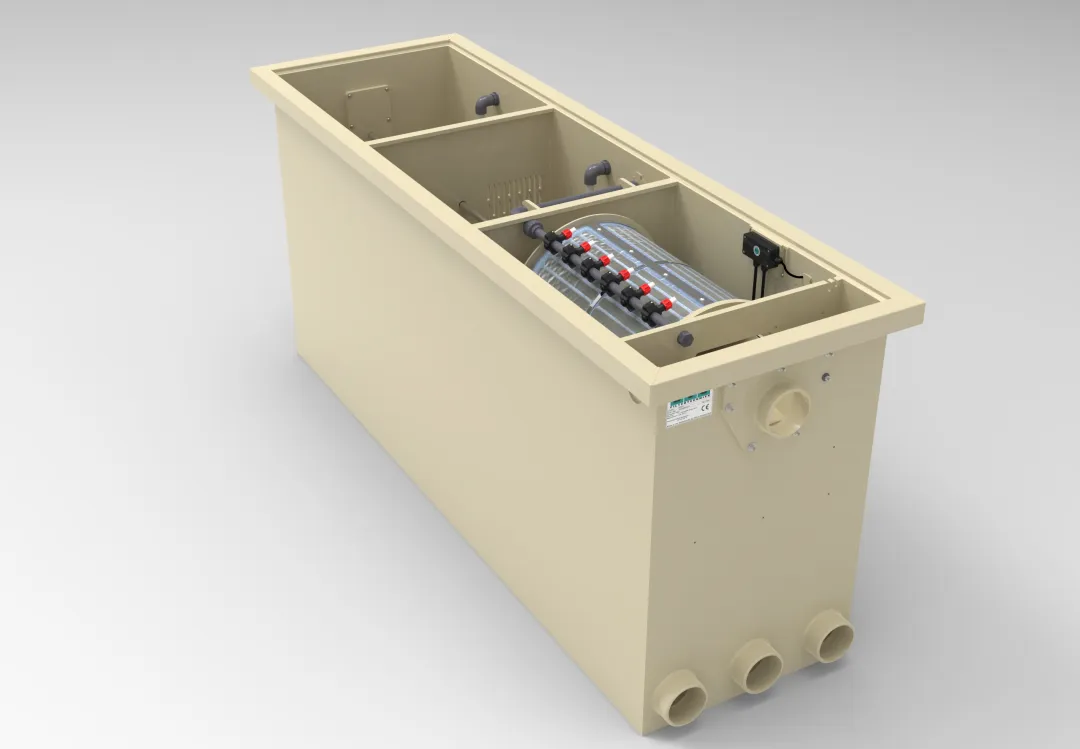

The CL35-M provides both mechanical and biological filtration. Because this system is equipped with a mat chamber, the biological filter starts up quickly.
The filter is equipped with WiFi functionality as standard and can be expanded with various options such as automatic gutter rinsing, temperature sensor and an automatic refill system so that you almost don't have to worry about it.
Product specifications
- Dimensions (L x W x H) 2232 x 670 x 925 mm
- Installation height 120 mm
- Maximum flow 35 m3/hour
- Koi pond 35 m³
- Swimming pond 140 m3
- Filter screen 120µ, 2 pieces (thickness 10 mm)
- Number of nozzles 6 pieces
- Inlet 3x Ø110 mm
- Outlet 3x Ø110 mm gravity
- 1x Ø110 mm for wastewater
- Control DVS digital HQ control + WiFi
- Sensor 2-pens
- Engine 60W / 50Nm (direct drive)
- Rinse pump Intern, 5 bar
- Aeration 2x air disc, 2x connection 20/25
- Moving bed Space for 125L Hel-X (not included)
- Mattenkamer Space for mats 1.5 pieces (2000x1000) (not included)
- Customization Inquire about the possibilities
