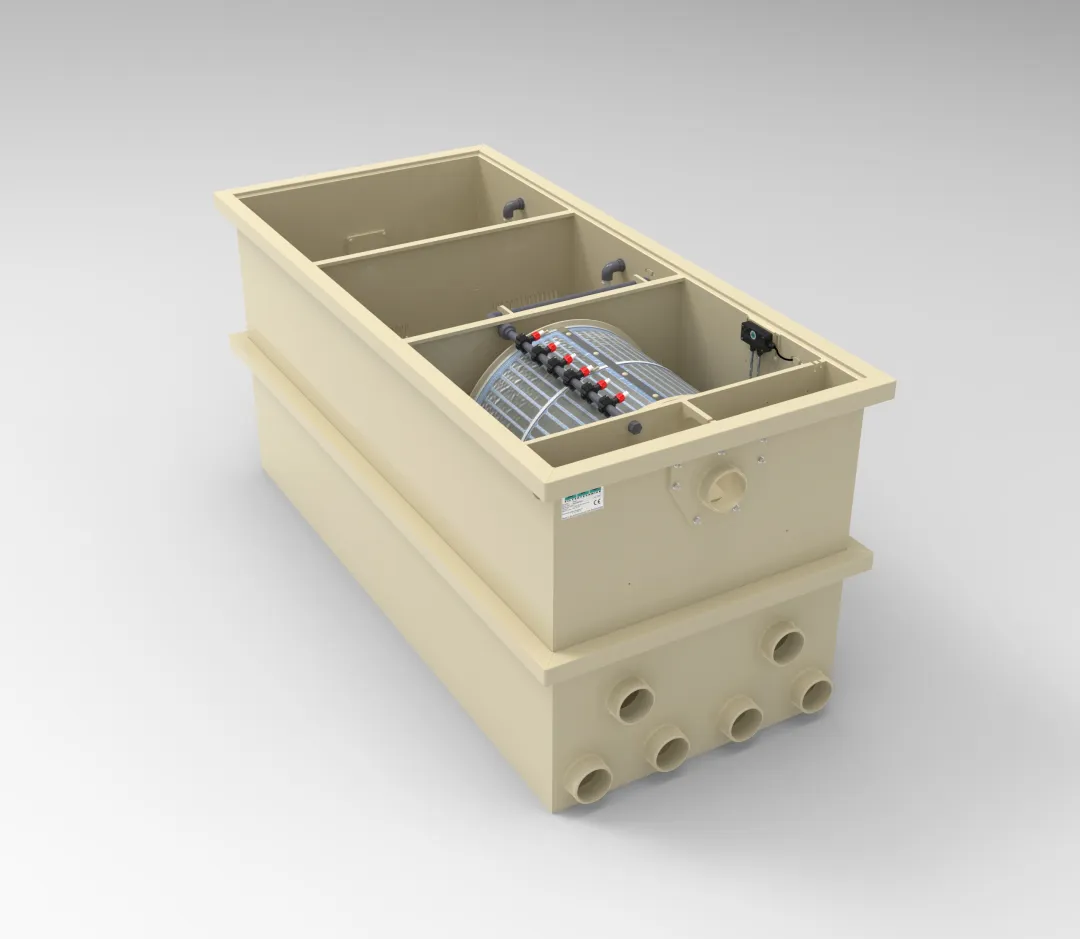

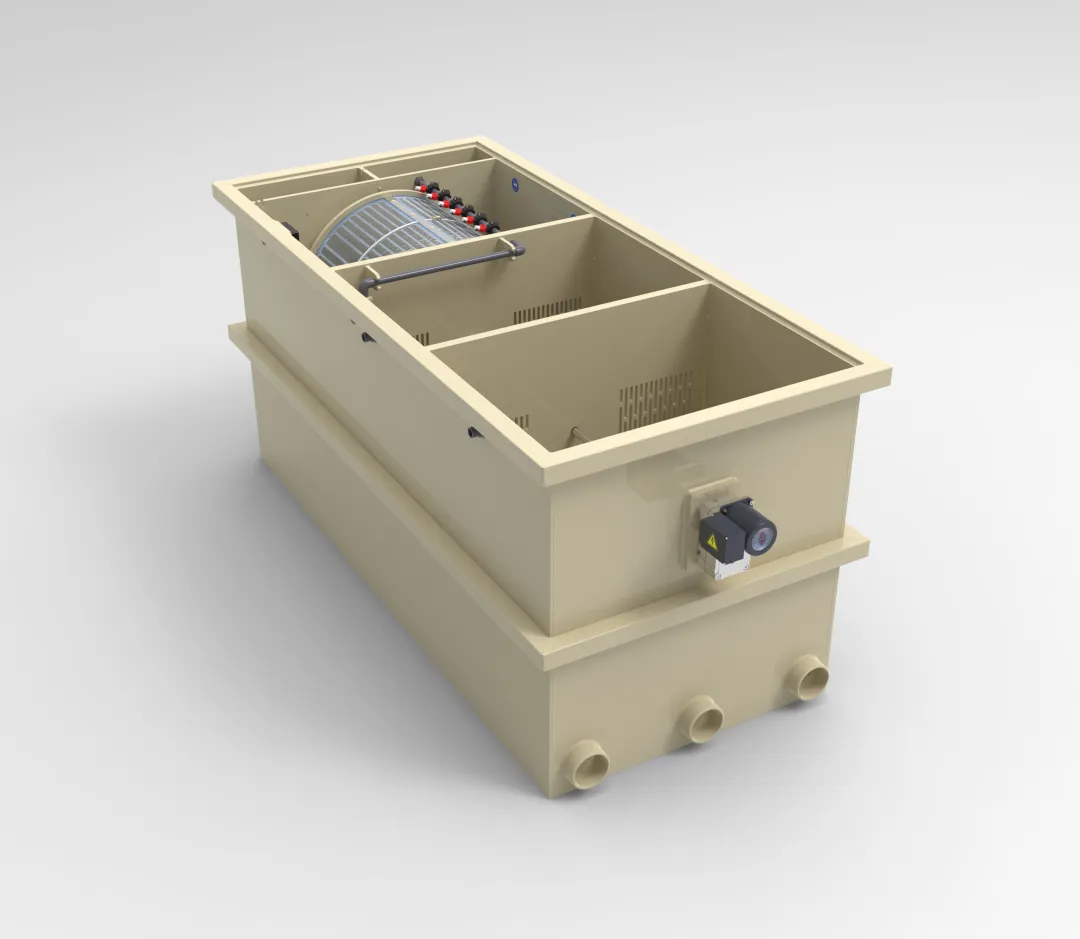

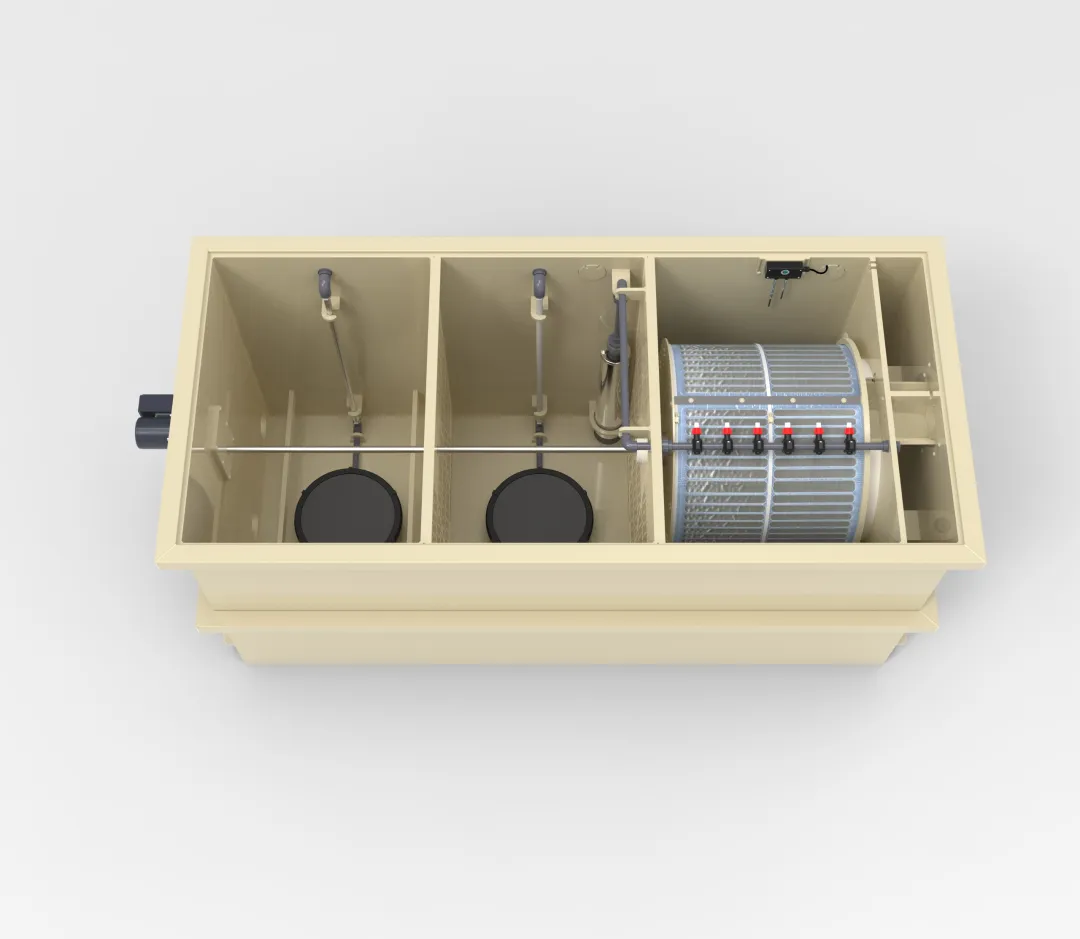

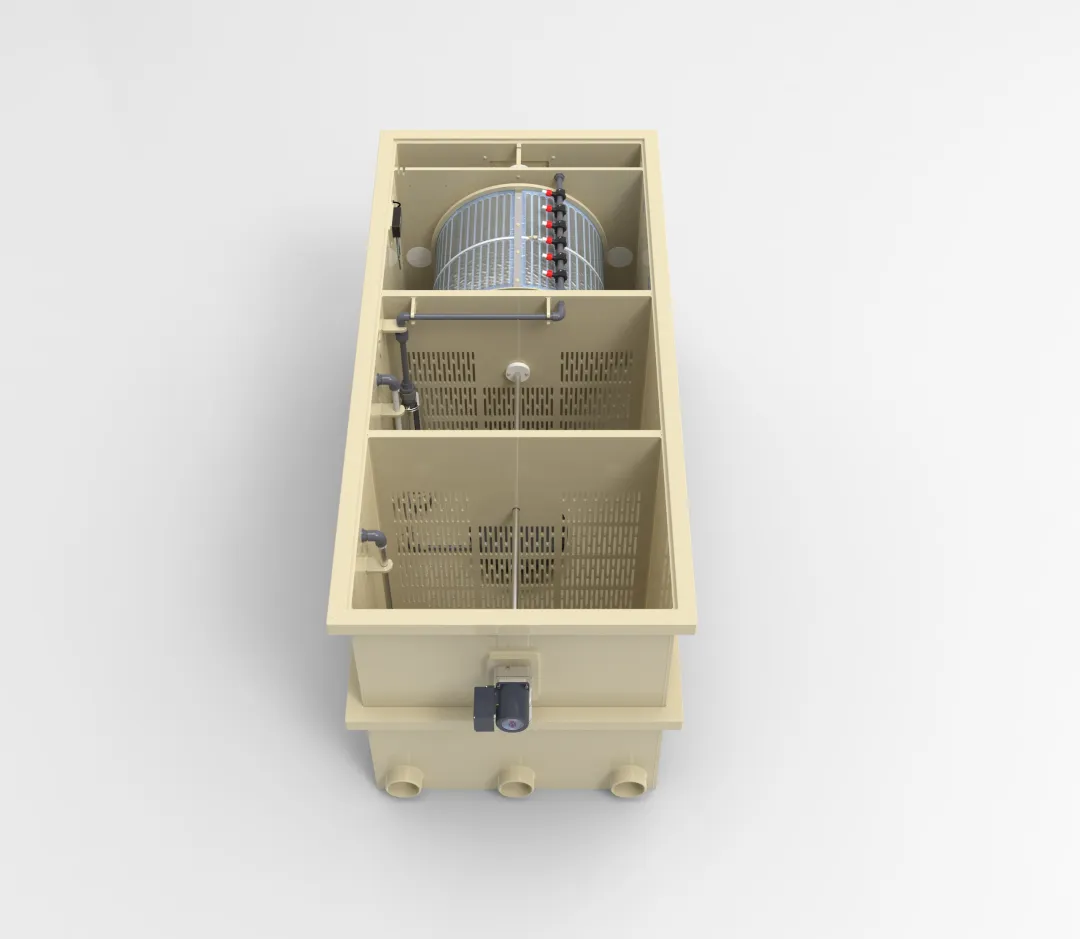

CL65-M
The CL65-M provides both mechanical and biological filtration. Because this system is equipped with a mat chamber, the biological filter starts up quickly.
The filter is equipped with WiFi functionality as standard and can be expanded with various options such as automatic gutter rinsing, temperature sensor and an automatic refill system so that you have almost nothing to worry about.
Product specifications
- Dimensions (L x W x H) 2232 x 970 x 985 mm
- Installation height 120 mm
- Maximum flow 65 m3/hour
- Koi pond 65 m³
- Swimming pond 260 m3
- Filter screen 120µ, 3 pieces (thickness 10 mm)
- Number of nozzles 6 pieces
- Inlet 6x Ø110 mm
- Outlet 3x Ø110 mm gravity
- 1x Ø110 mm for wastewater
- Control DVS digital HQ control + WiFi
- Sensor 2-pens
- Motor 60W / 50Nm (direct drive)
- Rinse pump Intern, 5 bar
- Aeration 2x air disc, connection 20/25
- Moving bed Space for 250L Hel-X (not included)
- Mattenkamer Space for mats 2 pieces (2000x1000 not included)
