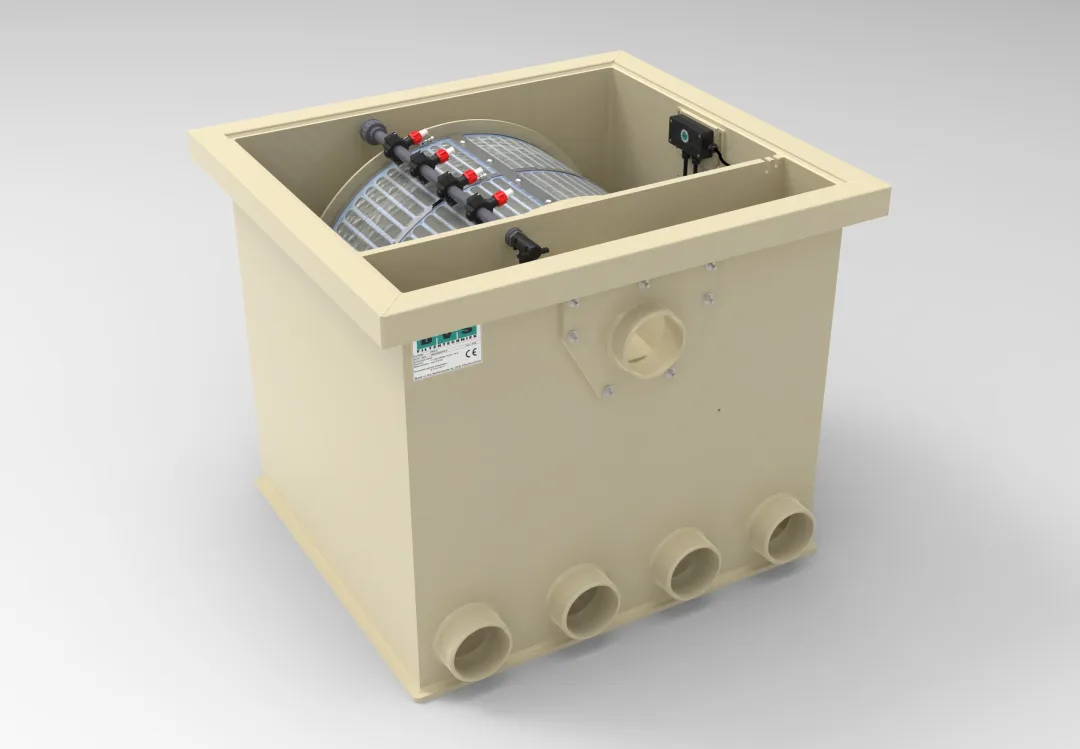

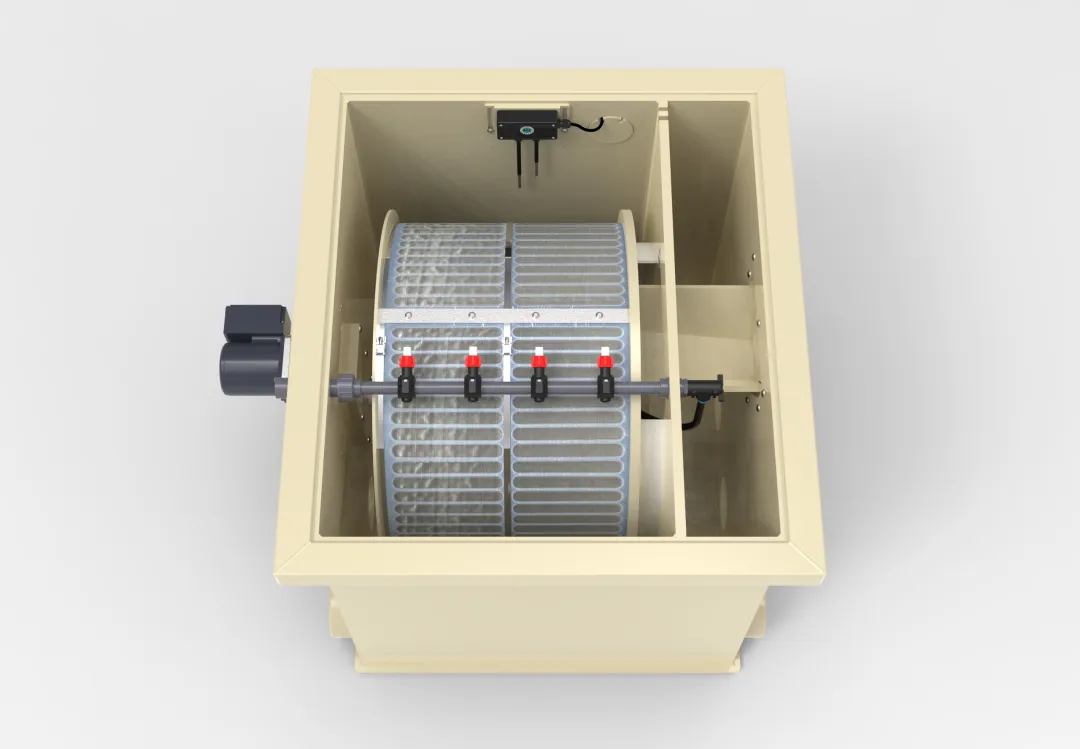

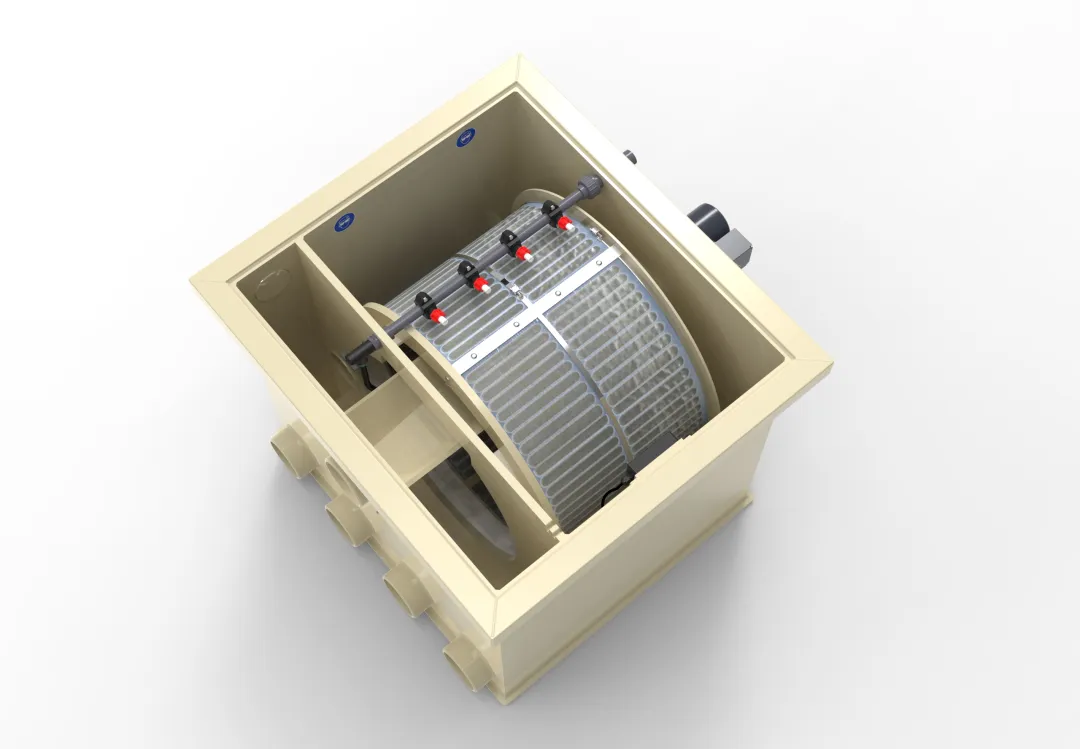

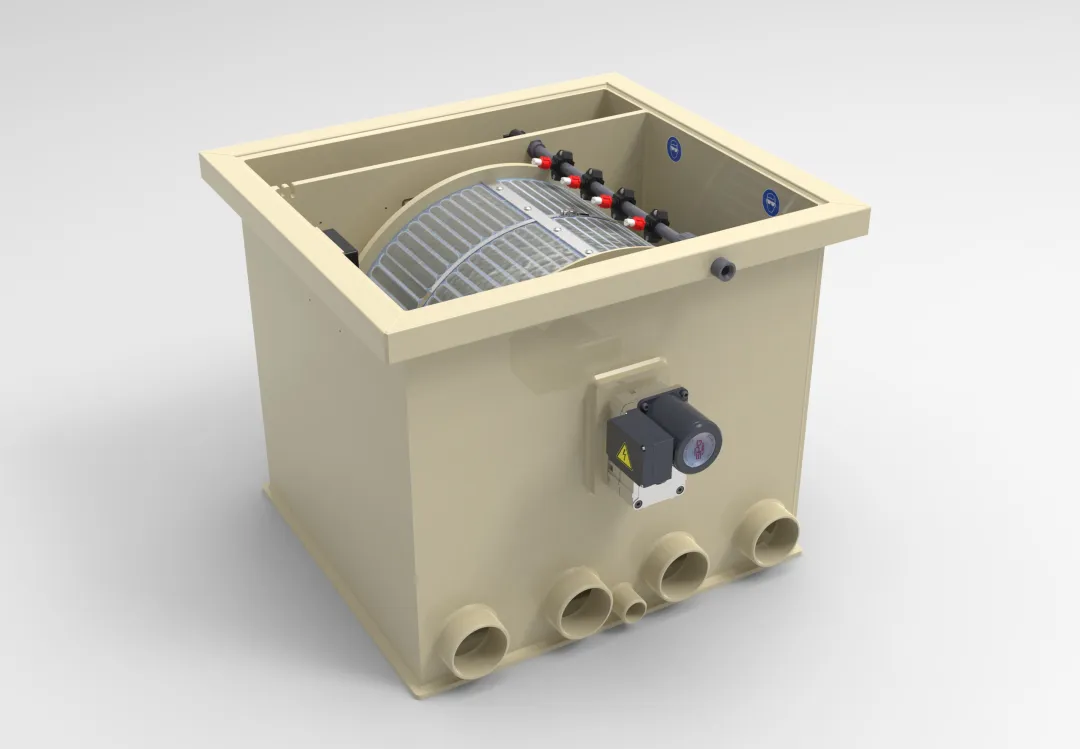

D50
The D50 is a very complete filter with the sieve panels of the ENTRY line and the controls of the High-end series.
>
The filter comes with a flush pump.
Product specifications
- Dimensions (L x W x H) 932 x 870 x 708 mm (incl. reinforcement tube)
- Built-in height 120 mm
- Maximum flow 50 m3/hour
- Koi pond 50 m³
- Swimming pond 120 m³
- Filter screen 120µ, 2 pieces (thickness 5 mm)
- Number of nozzles 4 pieces
- Inlet 4x Ø110 mm
- Outlet 4x Ø110 mm
- 1x Ø110 mm for wastewater drainage
- 1x Ø 50 mm for external flush pump
- 1x PVC 20-32 flush pump connection
- Control DVS digital HQ control + WiFi
- Sensor 2-pens
- Motor 60W / 50Nm (direct drive)
- Rinse pump HPP600
- Customization Not possible
